Memorex D² DVD±RW/DL Recorder - Page 11

DVD Recording Tests

- Writing Performance

The maximum supported speed is 16X for DVD+R media while with DVD-R it is 8X, and for rewritable media 4X.

Nero Burning Rom reported speeds are shown below.

The drive burns P-CAV at 8X/12X and CAV at 16X.

We used Nero CD-DVD Speed and its "create disc" function, in order to see the 8X, 12X and 16X recording technology being used by the F16 recorder. In the following graphs we used CMC 16X DVD+R media.

8X DVD+R Single Layer writing

The drive completed successful DVD writing at 8X in 8:11mins. It started writing at 6.69X, reached a maximum writing speed of 8.05X and reported an average speed of 7.98X.

12X DVD+R Single Layer writing

The start, end and average speeds for the Memorex were 6.67X, 12.08X and 10.91X respectively. The task finished after 6:17min

16X DVD+R Single Layer writing

The drive completed successful DVD writing at 16X in 5:48mins. It started writing at 6.66X, reached a maximum writing speed of 16.00X and reported an average speed of 11.97X.

Below is a table with the average writing speeds for various 16X recorders as measured by Nero CDDVDSpeed, showing that the Memorex achieved the fastest average 16X recording speed:

Drive	Writing Strategy	Writing Speed	Average Writing Speed
Memorex F16	CAV	16X	11.97X
BenQ DW1620A	CAV	16X	11.52X
ASUS DRW-1604P	Z-CLV	16X	10.11X
Pioneer DVR-108A	Z-CLV	16X	10.03X

Disc Label	Disc Information	Max Allowed Writing Speed	Total Recording Time (mins)
Mitsubishi Chemicals 16X	MCC 004	16X	5:47
Mitsubishi Chemicals 16X	MCC 004	12X	6:16
CMC 16X	CMC MAG M01	16X	5:45
CMC 16X	CMC MAG M01	12X	6:11
Verbatim 8X	MCC 003	8X	8:00
3A 8X	Plasmon1C01	8X	8:08
Philips 8X	PHILIPS C08	8X	8:00
Intenso 8X	Prodisc R03	8X	8:15
Traxdata 8X	RITEK R03	8X	7:59
Taiyo Yuden 8X	YUDEN000T02	8X	8:08
MMore 8X	MBIPG101RO4	8X	8:02
Maxell 4X	YUDEN000T01	4X	14:13
TDK 8X	TDK002	8X	8:03
Ricoh 8X	RICOHJPNR02	8X	8:02
Infosmart 4X	ISO1001	4X	14:19
CMC Magnetics 8X	CMC MAG E01	8X	8:21

- Supported media list/Burning Tests

We burned 4315MB of data on various DVD±R and DVD±RW media. We used the maximum allowed writing speed for each disc. With the current firmware (vB7H9), there's not a lot media being supported at 16X, especially for the DVD-R format. Future firmware releases are expected to support more media at 12X/16X for both the DVD±R formats.

- Writing Time Results

DVD-R media

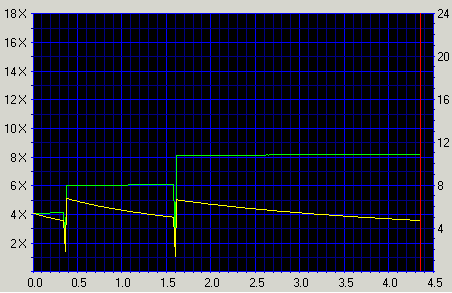

The writing strategy of the F16 with DVD-R media is Z-CLV.

Disc Label	Disc Information	Max Allowed Writing Speed	Total Recording Time (mins)
Verbatim 8X	MCC 02RG20	8X	9:14
MMore 8X	MBI 02RG20	8X	9:13
Maxell 8X	MXL RG03	8X	9:16
TDK 8X	TTHO1	8X	9:13
Intenso 4X	ProdiscS03	4X	14:35
Datawrite 8X	FUJIFILM03	8X	9:14
Optodisc 4X	OPTODISCOR004	4X	14:54
Mam 4X	MAMG4X02	4X	14:30
Infosmart 4X	SKC Co Ltd	4X	14:33
CMC Magnetics 8X	CMC MAG AE1	8X	9:14
Traxdata 8X	RITEKG05	8X	9:11
Taiyo Yuden 8X	TYG02	8X	9:12

Below are Nero screenshots for recording done at 16X and 12X:

According to firmware revision BWSB, the supported media and their speeds are as follows:

DVD-R

DVD+R

4M SYS 202C1/52 [ 4x ]
AML /52 [ 4x ]
AN30 /52 [ 4x ]
AN31 /52 [ 4x ]
AN32 /52 [ 4x ]
Auvistar /50 [ 2x ]
BeAll G00001/50 [ 2x ]
BeAll G40001/52 [ 4x ]
CMC MAG. /50 [ 2x ]
CMC MAG. AE1/52 [ 4x, 6x, 8x ]
CMC MAG. AF1/52 [ 4x ]
DATA TRACK /52 [ 4x ]
DAXON004 /52 [ 4x ]
DAXON008 /52 [ 4x, 6x, 8x ]
DKM_01 /52 [ 4x ]
Dvsn /52 [ 4x ]
FORNEX001 /50 [ 2x ]
FORNEX101 /52 [ 4x ]
FUJIFILM03 /52 [ 4x, 6x, 8x ]
GSC001 /50 [ 2x ]
GSC001 /52 [ 4x ]
GSC002 /52 [ 4x ]
GSC003 /52 [ 4x, 6x, 8x ]
INFODISC-R01/52 [ 4x ]
INFODISC-R20/52 [ 4x, 6x, 8x ]
LD /50 [ 2x ]
LEADDATA /50 [ 2x ]
LEADDATA S03/52 [ 4x, 6x, 8x ]
LEADDATA01 /52 [ 4x ]
LGE04 /52 [ 4x ]
LGE08 /52 [ 4x, 6x, 8x ]
LONGTEN 001 /52 [ 4x ]
LONGTEN 009 /52 [ 4x ]
MAM4XG01 /52 [ 4x ]
MBI /50 [ 2x ]
MBI 01RG20 /52 [ 4x ]
MBI 03RG30 /52 [ 4x, 6x, 8x ]
MCC 00RG200 /50 [ 2x ]
MCC 01RG20 /52 [ 4x ]
MCC 02RG20 /52 [ 4x, 6x, 8x ]
MCI4XG01 /52 [ 4x ]
MCIG01 /50 [ 2x ]
MEI 00V001 /50 [ 2x ]
MUST 001 /52 [ 4x ]
MXL RG01 /50 [ 2x ]
MXL RG02 /52 [ 4x ]
MXL RG03 /52 [ 4x, 6x, 8x ]
NANYA-JC001 /52 [ 4x ]
ONIDTECH /52 [ 4x ]
OPTODISCK001/50 [ 2x ]
OPTODISCK001/52 [ 4x ]
OPTODISCR004/52 [ 4x ]
OPTODISCR008/52 [ 4x, 6x, 8x ]
Plasmon1A /52 [ 4x, 6x, 8x ]
POSG04 /52 [ 4x ]
POSJ 01 /50 [ 2x ]
PRINCO /50 [ 2x ]
PRINCO /52 [ 4x ]
PRINCO8X01 /52 [ 4x, 6x, 8x ]
PRINCO8X02 /52 [ 4x, 6x, 8x ]
ProdiscF01 /52 [ 4x, 6x, 8x ]
PRODISCG02 /50 [ 2x ]
ProdiscS03 /52 [ 4x ]
ProdiscS04 /52 [ 4x, 6x, 8x ]
PVC001001 /00 [ 2x ]
PVCR001002 /52 [ 4x ]
RITEKG03 /50 [ 2x ]
RITEKG04 /52 [ 4x ]
RITEKG05 /52 [ 4x, 6x, 8x ]
RITEKM02 /52 [ 4x ]
SKC Co.,Ltd./52 [ 4x ]
SONY /50 [ 2x ]
SONY04D1 /52 [ 4x ]
SONY08D1 /52 [ 4x, 6x, 8x ]
TAIYOYUDEN /50 [ 2x ]
TAROKO-MX4 /52 [ 4x ]
TDKG02000000/50 [ 2x ]
TTG01 /52 [ 4x ]
TTG02 /52 [ 4x, 6x, 8x ]
TTH01 /52 [ 4x, 6x, 8x ]
TYG01 /52 [ 4x ]
TYG02 /52 [ 4x, 6x, 8x ]
UME01 /52 [ 4x, 6x, 8x ]
VANGUARD /52 [ 4x ]
VDSPMSAB 01 /52 [ 4x ]
VDSPSAB 01 /52 [ 4x ]
Yi Jhan 001 /52 [ 4x ]

AML /001/00 [ 4x ]
AML /002/00 [ 4x, 6x, 8x ]
BeAll000/P40/00 [ 4x ]
BeAll000/P80/00 [ 4x, 6x, 8x ]
CMC MAG /E01/00 [ 4x, 6x, 8x ]
CMC MAG /F01/00 [ 4x ]
CMC MAG /F01/01 [ 4x, 6x, 8x ]
CMC MAG /M01/00 [ 4x, 6x, 8x, 12x, 16x ]
CMC MAG /R01/00 [ 2.4x ]
DAXON /AZ1/00 [ 4x ]
DAXON /AZ2/00 [ 4x, 6x ]
DAXON /AZ3/00 [ 4x, 6x, 8x ]
DT-D02 /02 /00 [ 4x ]
DT-D03 /004/00 [ 4x, 6x, 8x ]
EMDP /000/00 [ 4x ]
GSC502 /002/00 [ 4x ]
GSC503 /H01/00 [ 4x ]
INFODISC/R10/02 [ 4x ]
INFODISC/R20/00 [ 4x, 6x, 8x ]
ISSM /001/00 [ 4x, 6x, 8x ]
LD /001/00 [ 2.4x ]
LD /A02/00 [ 4x ]
LD /S03/00 [ 4x, 6x, 8x ]
LONGTEN /002/00 [ 4x ]
MAXELL /001/00 [ 4x ]
MAXELL /002/00 [ 4x, 6x, 8x ]
MAXELL /003/00 [ 4x, 6x, 8x ]
MBIPG101/R03/00 [ 4x ]
MBIPG101/R04/01 [ 4x, 6x, 8x ]
MCC /001/00 [ 2.4x ]
MCC /002/00 [ 4x ]
MCC /003/00 [ 4x, 6x, 8x ]
MCC /004/00 [ 4x, 6x, 8x, 12x, 16x ]
MEDIA ID/001/00 [ 4x ]
MPOMEDIA/001/00 [ 2.4x ]
MPOMEDIA/040/00 [ 4x ]
MPOMEDIA/080/00 [ 4x, 6x, 8x ]
MUST /002/01 [ 4x, 6x, 8x ]
MUST 002/ /02 [ 4x ]
NANYA /CHX/00 [ 4x, 6x, 8x ]
NANYA /CLX/00 [ 4x, 6x, 8x ]
NANYA /DR /00 [ 2.4x ]
NANYA /RJB/00 [ 4x ]
OPTODISC/OP1/00 [ 2.4x ]
OPTODISC/OP2/00 [ 2.4x ]
OPTODISC/OR4/00 [ 4x ]
OPTODISC/OR8/00 [ 4x, 6x, 8x ]
Philips /081/00 [ 4x, 6x, 8x ]
PHILIPS /C08/00 [ 4x, 6x, 8x ]
PHILIPS /C16/01 [ 4x, 6x, 8x ]
Plasmon /c01/00 [ 4x, 6x, 8x ]
PRODISC /R01/00 [ 2.4x ]
PRODISC /R02/00 [ 4x ]
PRODISC /R03/00 [ 4x, 6x, 8x ]
PRODISC /R04/04 [ 4x, 6x, 8x ]
RICOHJPN/R00/00 [ 2.4x ]
RICOHJPN/R01/02 [ 4x ]
RICOHJPN/R02/03 [ 4x, 6x, 8x ]
RICOHJPN/R03/04 [ 4x, 6x, 8x ]
RITEK /M02/01 [ 4x ]
RITEK /R01/00 [ 2.4x ]
RITEK /R02/01 [ 4x ]
RITEK /R03/01 [ 4x, 6x, 8x ]
RITEK /R03/02 [ 4x, 6x, 8x ]
RITEK /R04/01 [ 4x, 6x, 8x ]
SKYMEDIA/R01/00 [ 2.4x ]
SONY /D01/00 [ 4x ]
SONY /D11/00 [ 4x, 6x, 8x ]
SONY /D21/00 [ 4x, 6x, 8x, 12x, 16x ]
TDK /001/00 [ 4x ]
TDK /002/00 [ 4x, 6x, 8x ]
TDK /003/00 [ 4x, 6x, 8x ]
ULTRAN /202/00 [ 4x ]
VDSPMSAB/001/01 [ 4x ]
YUDEN000/T01/00 [ 4x ]
YUDEN000/T01/01 [ 4x ]
YUDEN000/T02/00 [ 4x, 6x, 8x ]

The media from Traxdata with ID R04, certified for 16X speed, is not included in the current firmware and so the maximum speed for that media was 8X.

Some media had problems while playing back in our test DVD players. More details in the table below:

	Philips DVD 763SA	Philips DVD 963SA	Philips DVP 720SA	Pioneer DV-370	Pioneer DVR-320
CMC 8X DVD-R@ 8X	cannot access disc	cannot access disc	OK	OK	cannot access disc
Optodisc 4X DVD-R@ 4X	cannot access disc	cannot access disc	freezes at last chapters	freezes at last chapters	freezes at last chapters
Verbatim 8X DVD-R@ 8X	cannot access disc	cannot access disc	freezes at last chapters	freezes at last chapters	freezes at last chapters
Infosmart 4X DVD-R@ 4X	cannot access disc	cannot access disc	played with freezes	freezes at last chapters	freezes at last chapters
Intenso 8X DVD+R@ 8X	cannot access disc	cannot access disc	OK	OK	-
CMC 8X DVD+R@ 12X	cannot access disc	cannot access disc	OK	OK	-
CMC 8X DVD+R@ 16X	cannot access disc	cannot access disc	OK	OK	-

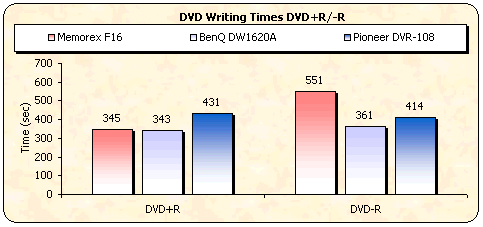

- Comparison with other drives

With DVD-R media, the Memorex was significantly slower than the other two drives due to its 8X supported speed which for the Pioneer and BenQ drives is 16X. On the other hand, with DVD+R media, all three drives support the same maximum speed of 16X, but there is a large difference in the reported times where the Pioneer drive was 86 seconds slower than the Memorex.
