Ridisc Media Tests

May 17,2005 0

9. Asus DRW-1604P (fw 1.18)

Review Pages

1. Introduction
2. 4X DVD+R ( RICOHJPNR01)
3. DVD-R 4X ( RITEK G04)
4. DVD-R 8X ( TTG02)
5. DVD-R 8X ( RITEK G05)
6. DVD-R 8X Silver Printable( CMC MAG AE1)
7. DVD+R 16X ( CMC MAG M01)
8. Aopen DUW1608-ARR (fw A070)
9. Asus DRW-1604P (fw 1.18)
10. Asus DRW-1608P (fw 1.50)
11. BenQ DW1620 (fw B7U9)
12. BenQ DW1625 (fw BBEA)
13. HP DVD640i (fw ES04)
14. LG GSA-4120B (fw A116)
15. LG GSA-4163B (fw A104)
16. LG GSA-5160B (fw A303)
17. LiteOn SOHW-1653S (fw CS0K)
18. LiteOn SOHW-1673S (fw JS05)
19. NEC ND-3520A ( fw 1.04)
20. NEC ND-3530A (fw 2.10)
21. Philips DVDR16LS (fw P1.6)
22. Philips DVDRW1640P (fw P.3.4)
23. Pioneer DVR-107 (fw 1.21)
24. Pioneer DVR-108 (fw 1.19)
25. Pioneer DVR-109 (fw 1.40)
26. Plextor PX-712A (fw 1.06)
27. Plextor PX-716A (fw 1.06)
28. Ricoh MP5316DA (fw 2B.9)
29. Samsung TS-H552B (fw TS09)
30. Toshiba SD-R5372 (fw TU55)
31. Waitec Action 16 (fw BSX1)
32. Conclusion

Drive	ASUS DRW-1604P
Media	DVD	CD
Transfer Rate Read	16X CAV SL DVD-ROM 12X CAV DL DVD-ROM	40X CD-ROM CAV
	12X CAV DVD±R
	8X CAV DVD±RW	32X CD-RW CAV
	2X CLV DVD-RAM
	8X CAV DVD+R9
Transfer Rate Write	16X DVD±R Z-CLV	32X CD-R Z-CLV
	4X DVD±RW CLV	24X CD-RW Z-CLV
	4 DVD+R9 CLV
Access Time	145ms	125ms
Mechanism	motorized Tray load mechanism for horizonal and vertical use
Interface	IDE / ATAPI
Burst Transfer Rate	PIO mode 4 / Ultra DMA 33
Cashe Memory	2MB
Supported Media formats	DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-Video, DVD-RAM, CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-IReady, CD-Bridge, Photo-CD, VideoCD, Hybrid CD
Audio	headphone jack and volume control at front plus digital-out and line-out at the back (MPC compatible)
Writing methods	DAO(disc at once), SAO(session at once), TAO(track at once) with zero gap, variable or fixed packet, multisession
Weight	1.1kgr
Dimensions	148(W) × 42.3(H) × 198(D) mm

- 4X DVD+R @ 4X

- 4X DVD-R @ 4X

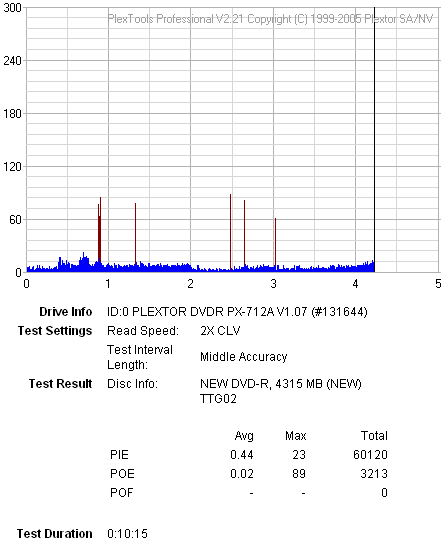

- 8X DVD-R @ 12X ( TTG02)

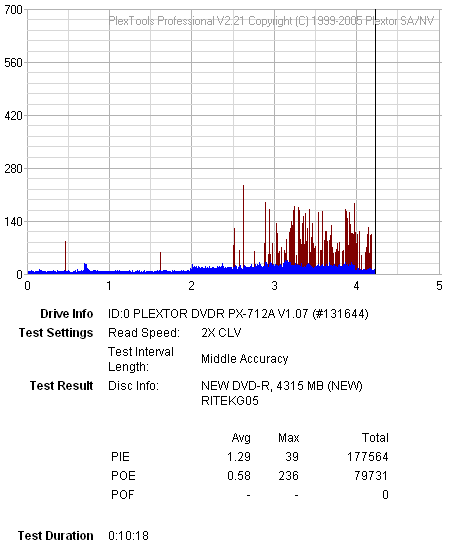

- 8X DVD-R @ 12X ( RITEK G05)

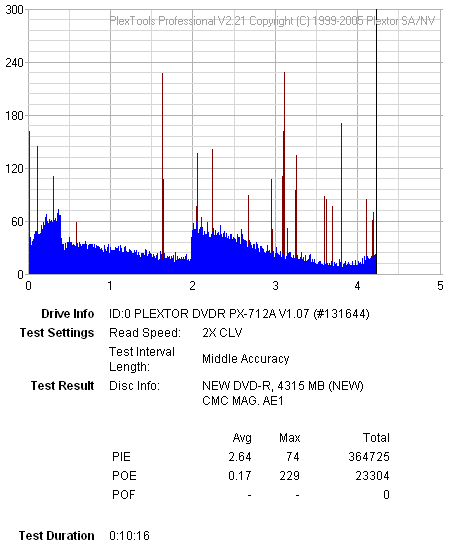

- 8X DVD-R @ 12X ( CMC MAG AE1)

- 16X DVD+R @ 16X ( CMC MAG M01)

- Summary

Media	Code ID	Speed	Time
4X DVD+R	RICOHJPNR01	4X	13:56
4X DVD-R	RITEK G04	4X	14:42
8X DVD-R	TTG02	12X	7:50
8X DVD-R	RITEK G05	12X	6:58
8X DVD-R pr.	CMC MAG AE1	12X	6:44
16X DVD+R	CMC MAG M01	16X	6:32
