Ridisc Media Tests

May 17,2005 0

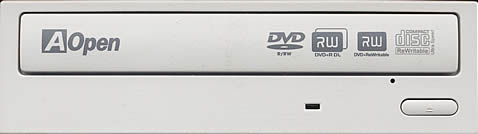

8. Aopen DUW1608-ARR (fw A070)

Review Pages

1. Introduction
2. 4X DVD+R ( RICOHJPNR01)
3. DVD-R 4X ( RITEK G04)
4. DVD-R 8X ( TTG02)
5. DVD-R 8X ( RITEK G05)
6. DVD-R 8X Silver Printable( CMC MAG AE1)
7. DVD+R 16X ( CMC MAG M01)
8. Aopen DUW1608-ARR (fw A070)
9. Asus DRW-1604P (fw 1.18)
10. Asus DRW-1608P (fw 1.50)
11. BenQ DW1620 (fw B7U9)
12. BenQ DW1625 (fw BBEA)
13. HP DVD640i (fw ES04)
14. LG GSA-4120B (fw A116)
15. LG GSA-4163B (fw A104)
16. LG GSA-5160B (fw A303)
17. LiteOn SOHW-1653S (fw CS0K)
18. LiteOn SOHW-1673S (fw JS05)
19. NEC ND-3520A ( fw 1.04)
20. NEC ND-3530A (fw 2.10)
21. Philips DVDR16LS (fw P1.6)
22. Philips DVDRW1640P (fw P.3.4)
23. Pioneer DVR-107 (fw 1.21)
24. Pioneer DVR-108 (fw 1.19)
25. Pioneer DVR-109 (fw 1.40)
26. Plextor PX-712A (fw 1.06)
27. Plextor PX-716A (fw 1.06)
28. Ricoh MP5316DA (fw 2B.9)
29. Samsung TS-H552B (fw TS09)
30. Toshiba SD-R5372 (fw TU55)
31. Waitec Action 16 (fw BSX1)
32. Conclusion

Interface	E-IDE/ATAPI
Recording Capacity	DVD+R (Double Layer) 8.5GB DVD+R/DVD-R 4.7GB DVD+RW/DVD-RW 4.7GB CD-R 700/650MB CD-RW 700/650MB
Data Transfer Mode	UDMA Mode 4 (66MB/sec) DMA Mode 2 (16MB/sec) PIO Mode 4 (16MB/sec)
Max. Recording Speeds	DVD+R DL (Double Layer) 2.4X DVD+R (Single Layer) 16X DVD-R 8X CD-R 48X
Max. Rewriting Speeds	DVD+RW 4X DVD-RW 4X CD-R 48X
Max. Reading Speeds	DVD-ROM 16X CD-ROM 48X
Buffer Memory	2MB
CD Writing Mode	Track at Once (TAO) Disk at Once (DAO) Session at Once (SAO) Multi-session Fixed Packet Variable Packet Raw Mode Burning Over-Burn
DVD Writing Mode	Multi-session Recording (DVD+R) Random Recording (DVD+RW) Disc at Once, Multi-Border (DVD-R) Restricted overwrite, DAO, Multi-border (DVD-RW)
Weight	900g
Dimensions	149x42x189.5 mm (half height)
System Requirement	Pentium III 450 or faster 64MB RAM minimum Windows XP/2000/ME/98SE

- 4X DVD+R @ 4X

- 4X DVD-R @ 4X

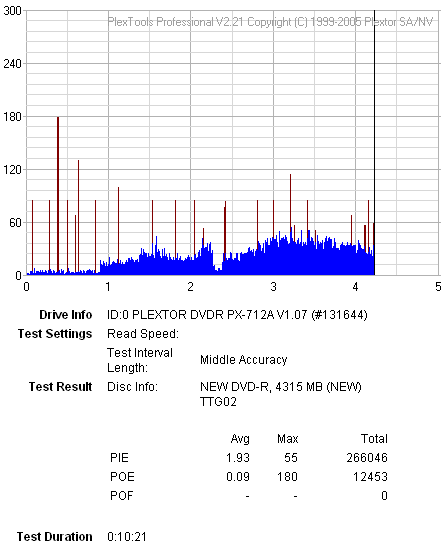

- 8X DVD-R @ 8X ( TTG02)

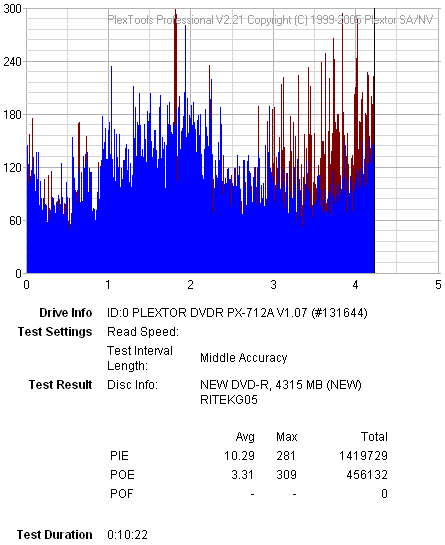

- 8X DVD-R @ 8X ( RITEK G05)

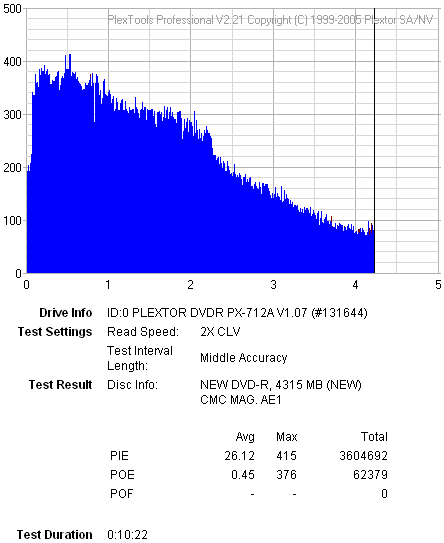

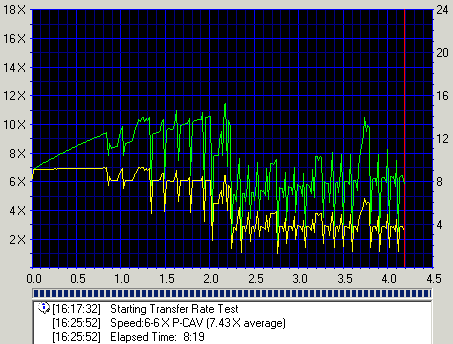

- 8X DVD-R @ 8X ( CMC MAG AE1)

- 16X DVD+R @ 12X

- Summary

Media	Code ID	Speed	Time
4X DVD+R	RICOHJPNR01	4X	16:12
4X DVD-R	RITEK G04	4X	15:50
8X DVD-R	TTG02	8X	10:55
8X DVD-R	RITEK G05	8X	10:48
8X DVD-R pr.	CMC MAG AE1	8X	11:08
16X DVD+R	CMC MAG M01	12X	9:38
