Ridisc Media Tests

0

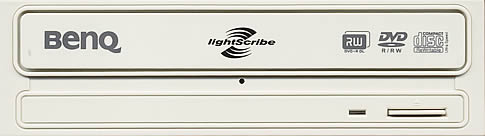

12. BenQ DW1625 (fw BBEA)



Review Pages

1. Introduction
2. 4X DVD+R ( RICOHJPNR01)
3. DVD-R 4X ( RITEK G04)
4. DVD-R 8X ( TTG02)
5. DVD-R 8X ( RITEK G05)
6. DVD-R 8X Silver Printable( CMC MAG AE1)
7. DVD+R 16X ( CMC MAG M01)
8. Aopen DUW1608-ARR (fw A070)
9. Asus DRW-1604P (fw 1.18)
10. Asus DRW-1608P (fw 1.50)
11. BenQ DW1620 (fw B7U9)
12. BenQ DW1625 (fw BBEA)
13. HP DVD640i (fw ES04)
14. LG GSA-4120B (fw A116)
15. LG GSA-4163B (fw A104)
16. LG GSA-5160B (fw A303)
17. LiteOn SOHW-1653S (fw CS0K)
18. LiteOn SOHW-1673S (fw JS05)
19. NEC ND-3520A ( fw 1.04)
20. NEC ND-3530A (fw 2.10)
21. Philips DVDR16LS (fw P1.6)
22. Philips DVDRW1640P (fw P.3.4)
23. Pioneer DVR-107 (fw 1.21)
24. Pioneer DVR-108 (fw 1.19)
25. Pioneer DVR-109 (fw 1.40)
26. Plextor PX-712A (fw 1.06)
27. Plextor PX-716A (fw 1.06)
28. Ricoh MP5316DA (fw 2B.9)
29. Samsung TS-H552B (fw TS09)
30. Toshiba SD-R5372 (fw TU55)
31. Waitec Action 16 (fw BSX1)
32. Conclusion



Performance [DVD+R DL]
Data Transfer Rate /double layer write: 26.59 Mbit/sec (2.4X)

[DVD+R/+RW]
Data Transfer Rate /write: 177.28 Mbit/sec (16X)
Data Transfer Rate /rewrite: 44.32 Mbit/sec (4X)
*DVD+R LightScribe available @ 1x with LightScribe discs.

[DVD-R/-RW]
Data Transfer Rate /rewrite: 88.64 Mbit/sec (8X)
Data Transfer Rate /rewrite: 44.32 Mbit/sec (4X)

[DVDROM]
Data Transfer Rate /read: 177.28 Mbit/sec (16X, Max.)
Access time: 120 ms

[CD]
Data Transfer Rate /write: 6000 KByte/sec (40X)
Data Transfer Rate /rewrite: 3600 KByte/sec (24X)
Data Transfer Rate /read: 6000 KByte/sec (40X, Max.)
*CDR LightScribe available @ 1x with LightScribe discs.
Access time: 120 ms
Interface E-IDE/ATAPI
Supported IDE Mode PIO mode 0/1/2/3/4
DMA mode 0/1/2
UDMA mode 0/1/2
Buffer Size 2MB
Firmware Upgrade Flash memory upgradable
Writing Mode [DVD]
DVD Data and Video

[CD]
Track-at-Once, Disc-at-Once, Multisession, Packet Writing (fixed & variable packet), CD Digital Audio, Direct-Over-Write on CD-RW, Test Write
Disc Size [DVD] 120 mm disc
[CD] 80 and 120 mm discs
Disc Formats [DVD]
DVD+R DL 8.5GB, DVD Video, DVD-5, DVD-9, DVD-10, DVD-18, DVD+RW 4.7GB, DVD+R 4.7GB, LightScribe DVD+R, DVD-RW 4.7GB (Closed Session), DVD-R 4.7GB

[CD]
CD-DA, CD-ROM XA (m1, m2f1/m2f2), CD-R, LightScribe CD-R, CD-RW, Bootable CD, Photo CD (Single & Multi-session), Video CD, Super Video CD, CD-Extra, Mixed-mode CD, CD-Text

Power Requirement +5V ± 5%, ripple: 100mVpp
+12V ± 10%, ripple: 200mVpp
Environment Conditions Operating temperature: 5oC~50oC at humidity of 8-80% RH
Non-operating temperature: -40oC ~60oC at humidity 5%~95% RH
Reliability Characteristics MTBF: 125,000 POH (20%)
Non-recoverable read error < 1 block in 1012 bits (CD and DVD)
Physical Characteristics Dimensionsl: 146 X 42 X 198 mm (W x H x D)
Weight: 1.0 Kg
OS Compatibility Windows XP / 2000 / ME / 98SE
*QVideo and QSuite are supported by Windows XP and 2000 only.
Minimum System Requirement • IBM PC compatible
• Pentium III 550MHz CPU
• 128MB RAM
• 100MB free HDD space for CD/DVD recording related software installation
• 1GB free HDD space for CD image recording (10GB for DVD authoring) is recommended.

- 4X DVD+R @ 4X

- 4X DVD-R @ 4X

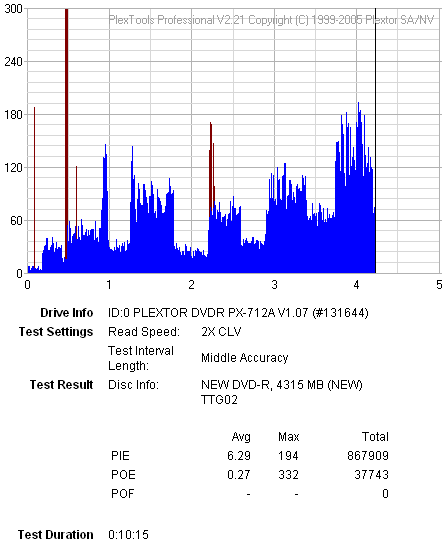

- 8X DVD-R @ 8X ( TTG02)

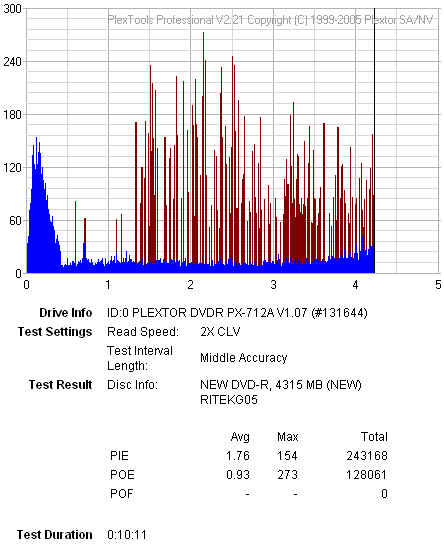

- 8X DVD-R @ 8X ( RITEK G05)

- 8X DVD-R @ 8X ( CMC MAG AE1)

- 16X DVD+R @ 16X ( CMC MAG M01)

- Summary

Media Code ID Speed Time
4X DVD+R RICOHJPNR01 4X 14:41
4X DVD-R RITEK G04 4X 15:14
8X DVD-R TTG02 8X 8:40
8X DVD-R RITEK G05 8X 8:08
8X DVD-R pr. CMC MAG AE1 8X 8:37
16X DVD+R CMC MAG M01 16X 9:22
