NEC ND-4550A

Feb 3,2006 0

17. DVD Writing Quality - Almedio



Review Pages

1. Introduction
2. Reading Tests
3. CD Error Correction
4. DVD Error Correction
5. Protected Discs
6. CD Recording Tests
7. CD Writing Quality - Plextools
8. CD Writing Quality - Clover System
9. DVD Writing Tests
10. DVD Writing Quality - Page 1
11. DVD Writing Quality - Page 2
12. DVD Writing Quality - Page 3
13. DVD Writing Quality - Page 4
14. DVD Writing Quality - Page 5
15. DVD Writing Quality - Page 6
16. DVD Writing Quality - Page 7
17. DVD Writing Quality - Almedio
18. DVDR DL - Page 1
19. DVDR DL - Page 2
20. Booktype Setting
21. 4550A vs SA300 - Page 1
22. 4550A vs SA300 - Page 2
23. 4550A vs SA300 - Page 3
24. 4550A vs SA300 - Page 4
25. Conclusion



The AEC-1000 consists of a DVD Drive and the "ALChecker" error measurement application which can check the written data quality. The application is capable of 1X CLV measurement as well as 4X CLV on DVD-Video/ROM and finalized DVD+R/-R media.

There are three measurement modes:

- Fine Mode: checks a series of eight consecutive ECC blocks,

- Rough Mode: checks eight consecutive ECC blocks every 100h ECC blocks

- Quick Mode: checks three specified areas

The checking status is shown graphically in real time while you can save the error graph at the end of the test. The reported errors are the PI and the UncPO. The PI counts the number of rows corrected by the PI error correction in each group of eight consecutive ECC blocks. The UncPO counts the number of ECC blocks in which more than one bytes are uncorrectable in eight consecutive ECC blocks. For our quality scans, we set for 1X CLV and Fine Mode which is the slowest and produces the safest results. Also, we chose to measure all the media that where unable to be read by the LiteON drive.

- 3A 8X DVD-R @ 8X

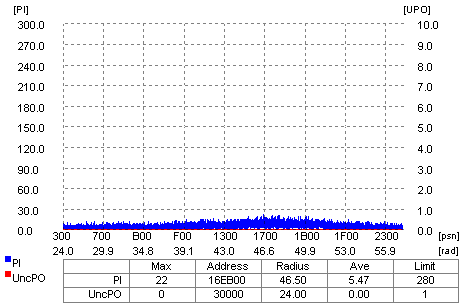

- Traxdata 8X DVD-R @ 8X

- ProdiscF01 8X DVD-R @ 8X

- Mitsubishi Chemicals 16X DVD-R @ 16X

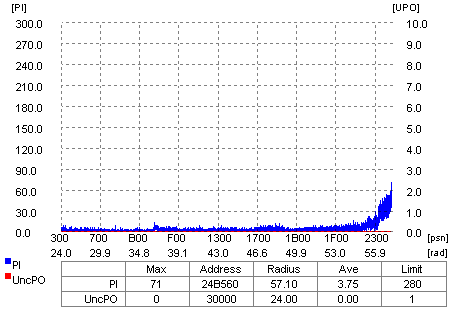

- ProdiscF02 16X DVD-R @ 16X

- Optodisc 16X DVD-R @ 16X

- Philips 16X DVD-R @ 16X

- Summary

According to the Almedio AEC-1000 error checker, the drive has good writing quality. The media we chose to measure were those which failed in CDSpeed with the LiteOn reader. Nothing to comment on here, since all tests finished successfully. :p
