NEC ND-4550A

Feb 3,2006 0

15. DVD Writing Quality - Page 6



Review Pages

1. Introduction
2. Reading Tests
3. CD Error Correction
4. DVD Error Correction
5. Protected Discs
6. CD Recording Tests
7. CD Writing Quality - Plextools
8. CD Writing Quality - Clover System
9. DVD Writing Tests
10. DVD Writing Quality - Page 1
11. DVD Writing Quality - Page 2
12. DVD Writing Quality - Page 3
13. DVD Writing Quality - Page 4
14. DVD Writing Quality - Page 5
15. DVD Writing Quality - Page 6
16. DVD Writing Quality - Page 7
17. DVD Writing Quality - Almedio
18. DVDR DL - Page 1
19. DVDR DL - Page 2
20. Booktype Setting
21. 4550A vs SA300 - Page 1
22. 4550A vs SA300 - Page 2
23. 4550A vs SA300 - Page 3
24. 4550A vs SA300 - Page 4
25. Conclusion



In order to test the writing quality and readability of the burned media, we used two readers equipped with two software applications:

- The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.

- The Plextor PX-716A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.

In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we oversped the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.

The measurements below should not be taken as the absolute criterion of the burning quality, but as an indication level.

8X DVD-R Writing Speed

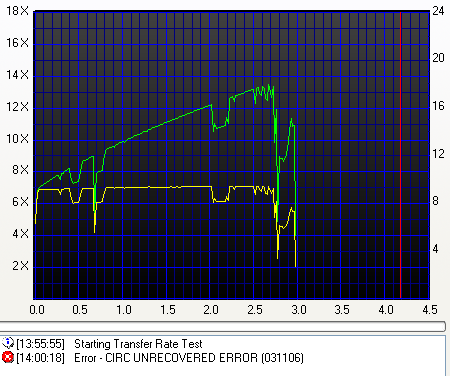

- 3A 8X DVD-R @ 8X

- Datawrite 8X DVD-R @ 8X

- BenQ 8X DVD-R @ 8X

- Memorex 8X DVD-R @ 8X

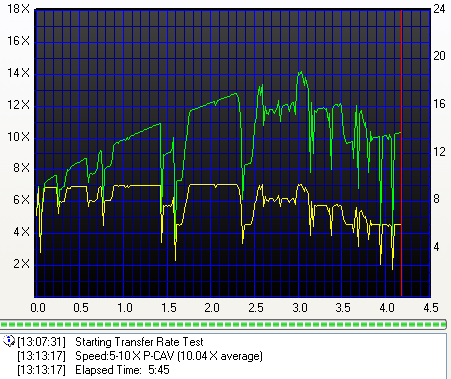

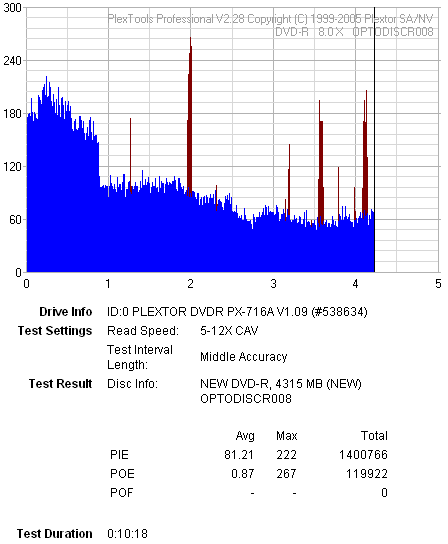

- Optodisc 8X DVD-R @ 8X

- CMC Magnetics 8X DVD-R @ 8X

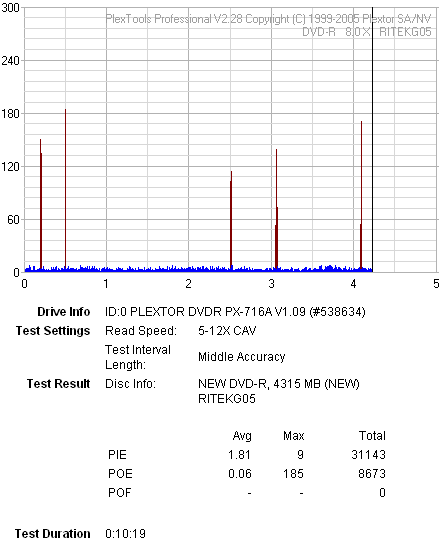

- Traxdata 8X DVD-R @ 8X

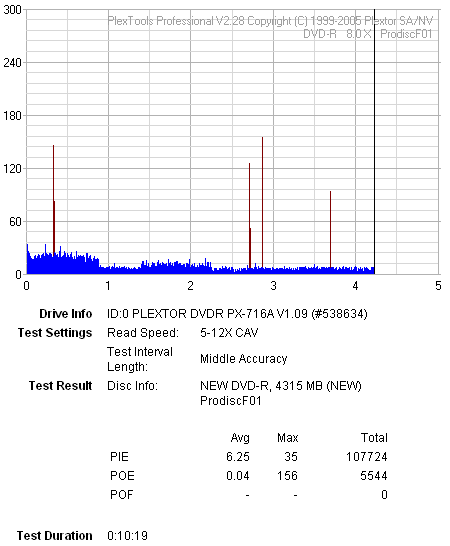

- ProdiscF01 8X DVD-R @ 8X

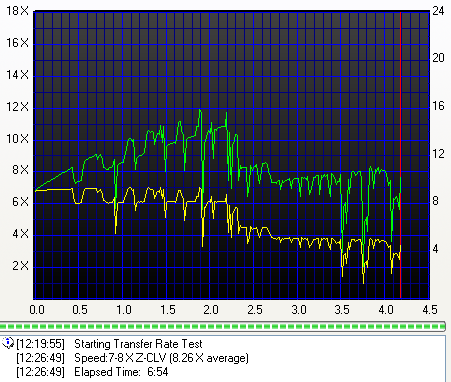

- Bulkpaq 8X DVD-R @ 8X

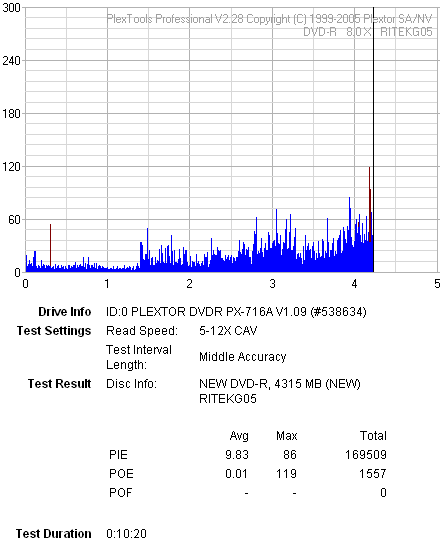

- RiDisc 8X DVD-R @ 8X

- Summary

Low error rates according to Plextools in most cases but with some media, the LiteOn reader failed miserably. Once again we repeated the CDSpeed reading tests with a second LiteOn reader, but the results were the same.
