LiteOn SOHW-1693S

Jun 24,2005 0

22. SOHW-1693S vs. SA300 - Page 4



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests - Reading Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. C1 / C2 Error Measurements
10. Writing Quality Tests - Clover System Tests
11. DVD Recording Tests
12. Support Media list for fw KS04
13. CDSpeed/PlexTools Scans - Page 1
14. CDSpeed/PlexTools Scans - Page 2
15. CDSpeed/PlexTools Scans - Page 3
16. Writing Quality Tests - Almedio AEC-1000
17. DVD+R DL - Page 1
18. DVD+R DL - Page 2
19. SOHW-1693S vs. SA300 - Page 1
20. SOHW-1693S vs. SA300 - Page 2
21. SOHW-1693S vs. SA300 - Page 3
22. SOHW-1693S vs. SA300 - Page 4
23. BookType Setting
24. Conclusion



For checking exactly what the SOHW-1693S reports, we used three different media, burned with other burners. The three media have been measured using the well known AudioDev SA300 DVD CATS system at 1X.

The drive is capable of reporting PI/PIF errors, so we will compare those measurements at 8X reading speed.

Please note that the posted results are only valid for the specific tested LiteON SOHW-1693S drive. Using other drives, even another SOHW-1693S, can produce totally different results. Be aware!

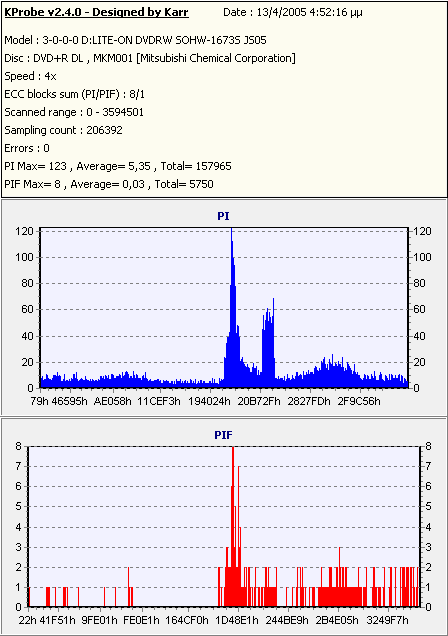

#3rd Test Disc - PISum8/PIF Comparison - 4X Reading speed

And lastly, PI levels and trend are very different, but PIF is better where levels are low.
