Philips ED16DVDR DL Recorder - Page 5
- Reading Tests

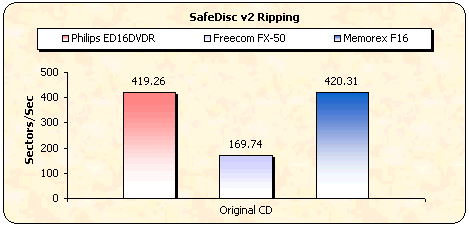

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.
Game Title
|
Protection Scheme
|
Duration
|
Reading speed
|
PSX "NBA Jam Extreme"
|
Lybcrypt
|
3:04min | 491 sectors/sec
|
Serious Sam The Second Encounter v1.07
|
SafeDisc v.2.60.052
|
13:20min | 419 sectors/sec
|
VRally II
|
SecuROM v.2
|
2:21min | 2438 sectors/sec
|
Philips produced avarage performance with the first two test games while it was fast with ripping the SecuROM protected game.
- Writing Tests
The ED16DVDR DL recorder supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.
Fifa 2004 - Safe Disc v3.1x
- The Sims Superstar - Safe Disc v2.9x
- The Sims Unleashed - Safe Disc v2.8x
- Serious Sam Second Encounter - Safe Disc v2.51.021
- Max Payne - Safe Disc v2.51.020
The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.
Drive
|
Fifa 2004 |
Sims Superstar
SD v2.9x |
Sims Unleashed
SD v2.8x |
Serious Sam-Second Encounter
SD v2.50.051 |
Max Payne
SD v2.51.020 |
|||||
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
EFM OFF
|
EFM ON
|
|
Toshiba
SD-M1502 |
No |
Yes |
||||||||
Creative CD5233E
|
||||||||||
Philips ED16DVDR |
The above table indicates that the ED16DVDR is not a suitable drive for copying SafeDisc protected discs. Only some versions of Safedisc protection could be backed up.
