Philips ED16DVDR DL Recorder - Page 24

ED16DVDR DL vs. SA300 - Page 3

For checking exactly what the Philips ED16DVDR reports, we used three different media, burned with other writers. The three media have been measured with the well known AudioDev SA300 DVD CATS system at 1X.

The drive is capable of reporting PI/PIF errors, so we will compare those measurements for various reading speeds:

• 3~8X CAV
• 2~6X CAV
• 4X CLV

Please note that the posted results are only valid for the specific tested Philips drive. Using other drives, even another F16, can produce totally different results. Be aware!

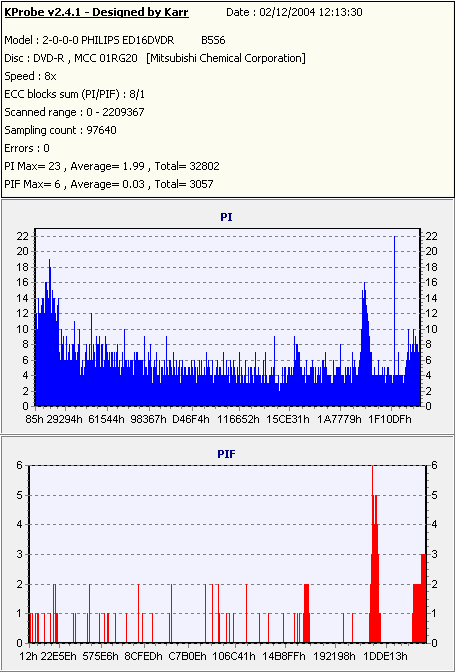

#3st Test Disc - PISum8/PIF Comparison - 8X Reading speed

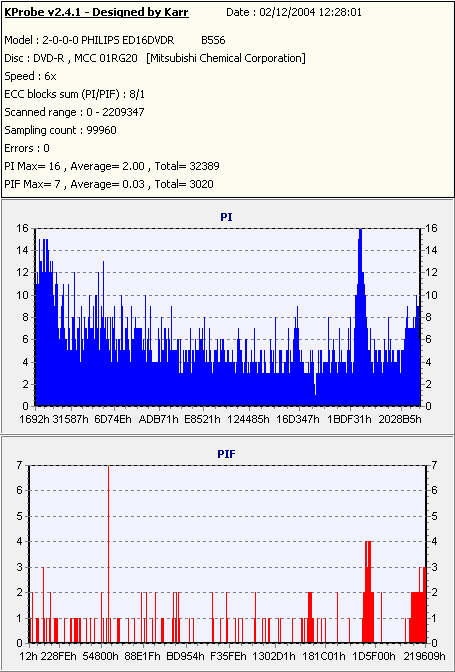

#3st Test Disc - PISum8/PIF Comparison - 6X Reading speed

#3st Test Disc - PISum8/PIF Comparison - 4X Reading speed

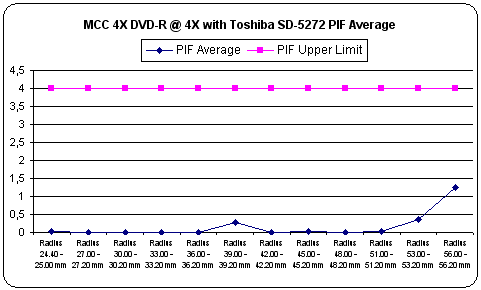

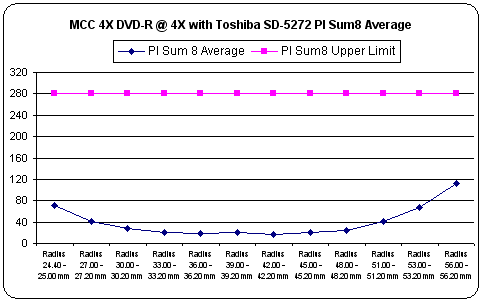

The PI sum trend lines, when scanning with the Philips drive, are close to those of the SA300. The PIF are also similar but not so much while the values for PI sum are totaly different.
