In the following tests, we examine the DVD reading capabilities of the TEAC DV-W516GB drive with scratched / defective DVD media. For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test media comes from ALMEDIO.
- Single Layer media

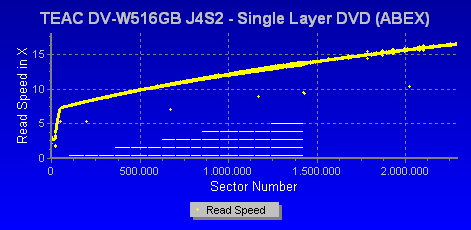

This is a single sided, single layer DVD-ROM with 4.7GB capacity and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm. The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.
The drive managed to successfully read over the defective area without any drop or fluctuations in reading speed whatsoever. A very nice reading, indicating good error correction capabilities.
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on it but instead, defective areas of dimensions ranging from 0.5 to 1.1 mm. There are also fingerprints sized between 65 and 75 micrometers.
Once again, nice reading, with only a drop in speed just before the start of the fingerprint defect area which the drive's error correction mechanism overcame, completing the test successfully.- Dual Layer media

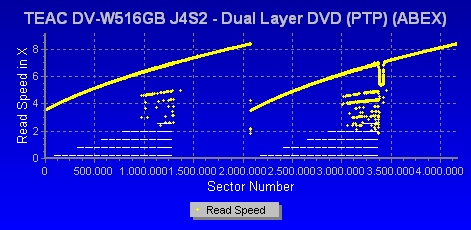

This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.
In this case, we have a some very minor problems over the last portions of the two defective regions but the test finished without any errors being reported.

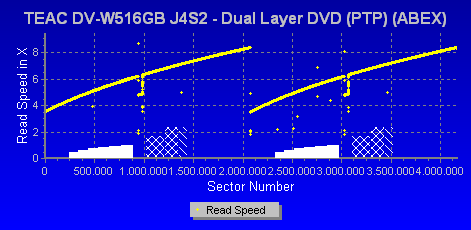

This test disc is a single sided, dual layer DVD-ROM disc with a capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 discs is that the first includes defective areas and fingerprints. The dimensions of the defective areas ranges from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micrometers.
Good performance .

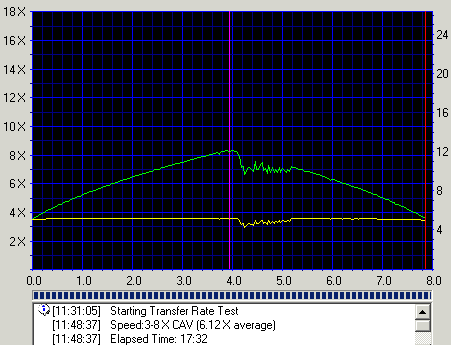

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB. The disc is based on the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals for DVD sound files. The current TDV-541 also checks the error correcting capabilities of the drive and includes scratches from 0.4 to 3.0 mm.
This is a difficult test disc for many of the latest DVD burners. The TEAC drive managed to successfully read all the contents without any errors.

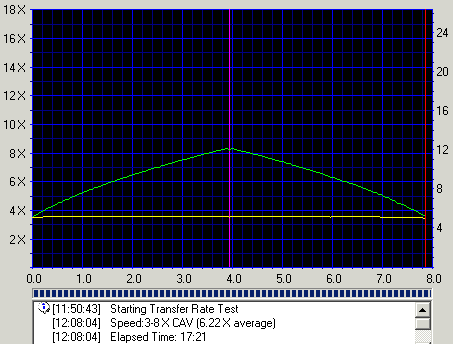

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the data surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometer fingerprints.
Excellent, smooth graph.
Overall, rather good error correction capabilities from the TEAC drive.
