Plextor PX-716A Burner - Page 10
We measured the C1 / C2 error rate of the recorded discs we burned at the maximum 48X supported writing speed. The software used was PleXTools Professional v2.18, and particularly the built-in Q-Check utility. The reader was the same drive, the Plextor PX-716A (firmware v1.02).
Traxdata 80min 52X @ 48X
BenQ 80min 52X @ 48X
SKC 80min 48X @ 48X

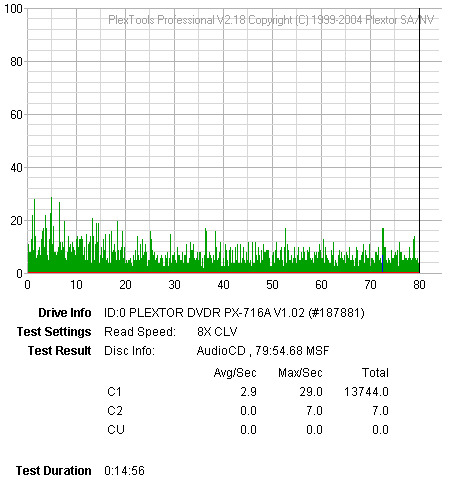

Creation 80min 48X @ 48X
MMore 80min 52X @ 48X
- Summary
The CD media burned with the Plextor burner produced C1 errors at normal levels while the C2 levels were were negligible and present in only a single case, that of SKC media. Generally good quality. But let's see what professional equipment will report...
- Appendix
Media Label |
ID Code |
Manufacturer Name |
Lead Out TIme |
Traxdata 52X |
97m15s17f |
Ritek |
79:59.70 |
BenQ 52X | 97m22s67f |
Daxon. |
79:59.74 |
SKC 48X |
97m26s26f | SKC Co., Ltd. | 79:59.73 |
Creation 48X | 97m27s18f | Plasmon Data Systems Ltd. | 79:59.74 |
MMore 52X |
97m17s 6f |
Moser Baer India, Ltd. |
79:59.74 |
