- Reading Tests

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

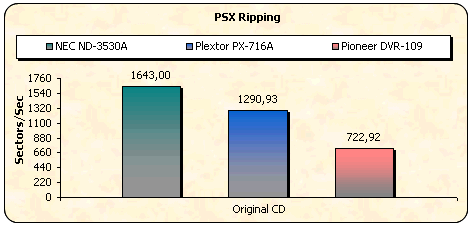

SafeDisc v2 protected discs was a major headache for the NEC ND-3530A burner, while the PX-716A reported outstanding, high speed reading. On the other hand, SecuROM v2 copy protection will not bother you anymore, and PSX ripping speed was even faster than the Plextor drive. In general, the NEC burner showed very good performance concerning SecuROM and PSX ripping.

- Writing Tests

The NEC ND-3530A supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

• FIFA 2004 - Safe Disc v3.1x
• The Sims Superstar - Safe Disc v2.9x
• The Sims Unleashed - Safe Disc v2.8x
• Serious Sam Second Encounter - Safe Disc v2.51.021
• Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

Like most NEC based drives, the ND-3530A cannot produce working backups with the newest v2.8x, v2.9x and v3.1x builds. Partially working backups were produced for SafeDisc v2.51.051 & v2.51.020.
