LiteON SOHW-1673S

May 4,2005 0

9. C1 / C2 Error Measurements



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. C1 / C2 Error Measurements
10. Writing Quality Tests - Clover System Tests
11. DVD Recording Tests
12. Media Support list for FwJS05
13. CDSpeed/PlexTools Scans - Page 1
14. CDSpeed/PlexTools Scans - Page 2
15. CDSpeed/PlexTools Scans - Page 3
16. CDSpeed/PlexTools Scans - Page 4
17. CDSpeed/PlexTools Scans - Page 5
18. DVD+R DL - Page 1
19. DVD+R DL - Page 2
20. SOHW-1673S vs. SA300 - Page 1
21. SOHW-1673S vs. SA300 - Page 2
22. SOHW-1673S vs. SA300 - Page 3
23. SOHW-1673S vs. SA300 - Page 4
24. BookType Setting
25. Conclusion



We measured the C1 / C2 error rate on the recorded discs we burned at the maximum supported writing speed of 48X. The software we used is PleXTools Professional v2.16, and more specifically the built-in Q-Check utility. The reader was the Plextor PX-712A (firmware v1.05).

  • Intenso 80min 52X @ 48X

  • MMore 80min 52X CD-R @ 48X

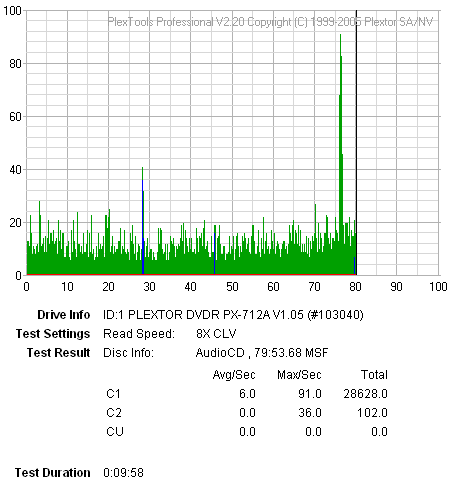

  • Philips 80min 52X @ 48X

  • Traxdata 80min 52X @ 48X

  • Verbatim 80min 48X @ 40X

- Summary

CD writing quality according to Plextools is very much dependent on the inserted media. In almost all cases, there were C2 errors while in the case of Traxdata media, there were also CU errors. Only with Verbatim media did it manage a good burn. We expect a newer firmware release will improve this.

- Appendix

  • Media ID codes
Media Label
ID Code
Manufacturer Name
Lead Out TIme
Intenso 80min 52X
97m32s19f
Prodisc
79:59:71
MMore 80min 48X
97m17s 6f
Moser Baer India, Ltd.
79:59.74
Traxdata 80min 52X
97m15s17f
Ritek Co.
79:59:70
Philips 80min 48X
97m15s17f
Ritek Co.
79:59:70
Verbatim 80min 52X
97m34s23f
Mitsubishi Chemical Corporation
79:59:73
