LiteOn SOHW-1653SX

Jun 6,2005 0

8. DVD Recording Test



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. DVD Error Correction Tests
4. Reading 90/ 99mins AudioCDs
5. CD Recording Tests
6. C1 / C2 Error Measurements
7. Writing Quality Tests - Clover System Tests
8. DVD Recording Test
9. CDSpeed/PlexTools Scans - Page 1
10. CDSpeed/PlexTools Scans - Page 2
11. CDSpeed/PlexTools Scans - Page 3
12. CDSpeed/PlexTools Scans - Page 4
13. CDSpeed/PlexTools Scans - Page 5
14. Writing Quality Tests - Almedio AEC-1000
15. DVD+R DL - Page 1
16. DVD+R DL - Page 2
17. BookType Setting
18. Conclusion



The maximum supported speed is 16X for DVD+R media while with DVD-R it is 12X and for rewritable media, 4X.

Nero Burning Rom reported speeds are shown below.


The drive uses P-CAV strategy for burning DVD+R at 8X/12X and CAV for 16X.

For the DVD-R the writing strategy at 8X is Z-CLV and P-CAV.
  • 8X DVD+R Single Layer writing strategy

  • 12X DVD+R Single Layer writing strategy

  • 16X DVD+R Single Layer writing strategy

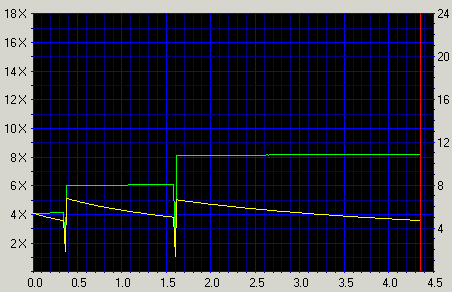

  • 8X DVD-R Single Layer writing strategy

  • 12X DVD-R Single Layer writing strategy

- Burning Tests

For our recording tests we burned 4315MB of a DVD-Video compilation at the maximum allowed writing speed for each media. First, we transferred the movie to the hard disc with DVD Decrypter in DVD-Video format. Then we used the latest version of Nero Burning Rom software to burn the VIDEO_TS file to the discs.

  • DVD-R media


  • DVD+R media



- DVD Overburning Test

  • DVD+R

  • DVD-R

Unfortunately, the drive does not support DVD overburning with either the -R or +R media formats, giving the above error messages.

- DVD+MRW Tests

The drive does not support the Mount Rainier feature.
