Waitec Action 16 Recorder - Page 9

3T Jitter Tests

On this page you can see the 3T Pit & Land Jitter graphs using various media burned at 48X CAV writing speed.

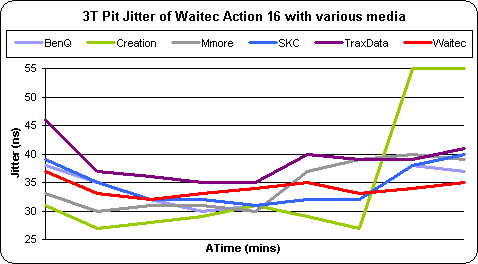

- 3T Pit results

At 48X writing speed, most media reported high levels, which indicates bad performance. Best results were with Waitec and SKC media.

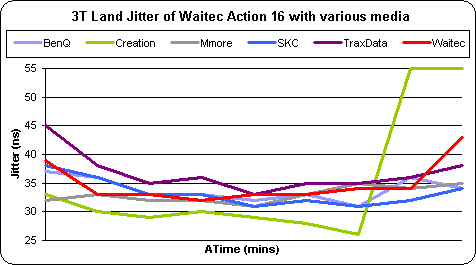

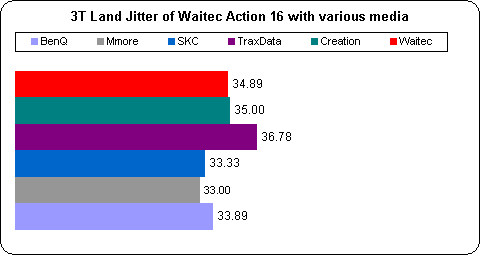

- 3T Land results

Once again, the Jitter test reports high 3T Land results. Best results came with Mmore and SKC media..

On the following page, we check the C1 and C2 error rates of the same discs, to come up with more specific conclusions.
