Waitec Action 16 Recorder - Page 7

Protected AudioCDs

For this test we used Exact Audio Copy (EAC) and three audio discs each of them deigned with different copy protection techniques.

The tested protected Audio discs were:

  • Sony's Key2Audio from "Celine Dion - New Day Has Come"
  • Cactus Data Shield 200 from "Natalie Imbruglia - White Lilies Island"

The "White Lilies Island" from Natalie Imbruglia comes with the Cactus Data Shield 200, a disc which contains artificial errors, rendering a reader unable to process them, while the Sony's Key2Audio from Celine Dion's album "New Day Has Come", contains a second session, rendering readers unable to access the TOC (Table Of Contents).

The tested tasks are:

  • Recognition of the inserted disc (Yes/No)
  • Ripping all wavs (with EAC's Burst Mode) to the hard disk with copy&compare function.
  • Listening to the produced wavs for any clicks/skips.

The Waitec Action 16 recognized up to the 12th Audio track of CDS200 disc,

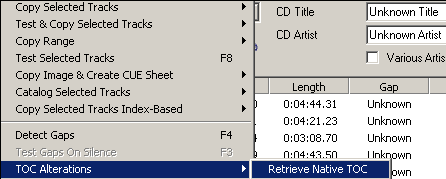

and with the "Retrieve Native TOC" option removed, it then recognized the 13th track.

The test results are shown in the following table:

Key2Audio
CDS200
Waitec Action 16/1
Ripping process completed, EAC reports no problems, Read&Test CRC comparison successful for all tracks
Ripping process completed, EAC reports timing problems, Read&Test CRC comparison not the same for all tracks

The Waitec Action 16 will rip both Key2Audio and CDS200 protected audio discs. Both discs were recognized and their contents were ripped at the maximum speed.

  • Cactus Data Shield 200.0.4 - 3.0 build 16a (Aiko Katsukino - The Love Letter)

This is a "special" CDS200 build, since it doesn't contain any artificial errors during the ripping process. Most problems occur when trying to write the ripped wav files, since the produced CD-R disc contains C2 and CU errors! This "problem" is rumored to be associated with specific chipset weaknesses.

We ripped the disc contents with EAC and burned the produced wav with the latest Nero version as AudioCD+CD-Text. The burned media was checked for C1/C2 errors with PlexTools using the Plextor PX-712A (firmware v1.05).



CDS 200.0.4 - 3.0 build 16a
Waitec Action 16/1
Reading performed without any errors, writing produces few C2 spikes
  • C1C2 Error rate from PleXWriter PX-712A (8X CLV reading speed)

  • BETA/Jitter Error rate with the PleXWriter PX-712A

The C1/C2 error graphs show that the drive managed to produce a 100% error free disc.

We then tried to extract all the wav files with the Plextor PX-712A and PlexTools DAE with Error Correction 5th Level enabled:

No errors were reported after extracting all files.
