Teac DV-W516GB

Jun 9,2005 0

12. CDSpeed/PlexTools Scans - Page 4



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. CD Recording Tests
6. C1 / C2 Error Measurements
7. Writing Quality Tests - Clover System Tests
8. DVD Recording Tests
9. CDSpeed/PlexTools Scans - Page 1
10. CDSpeed/PlexTools Scans - Page 2
11. CDSpeed/PlexTools Scans - Page 3
12. CDSpeed/PlexTools Scans - Page 4
13. CDSpeed/PlexTools Scans - Page 5
14. Writing Quality Tests - Almedio AEC-1000
15. DVD+R DL - Page 1
16. DVD+R DL - Page 2
17. BookType Setting
18. Conclusion



In order to test the writing quality and readability of the burned media we used two readers with two software applications:

  • The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
  • The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.

In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we overspeed the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.

The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

8X DVD-R Writing Speed

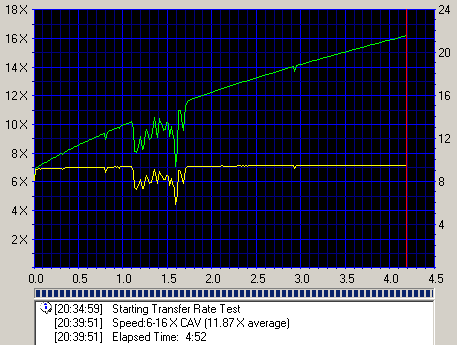

  • 3A 8X DVD-R @ 8X

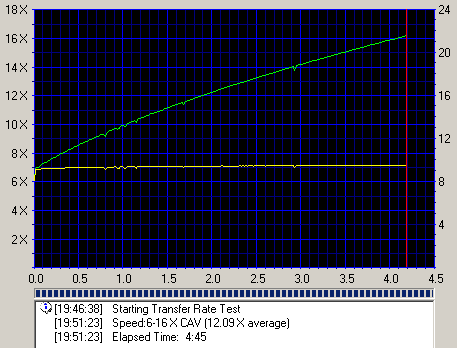

  • Datawrite 8X DVD-R @ 8X

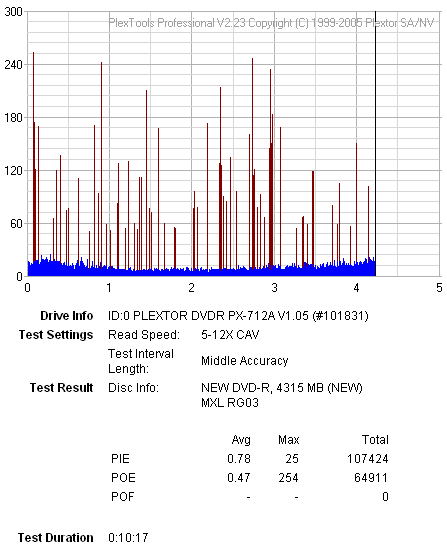

  • Maxell 8X DVD-R @ 8X

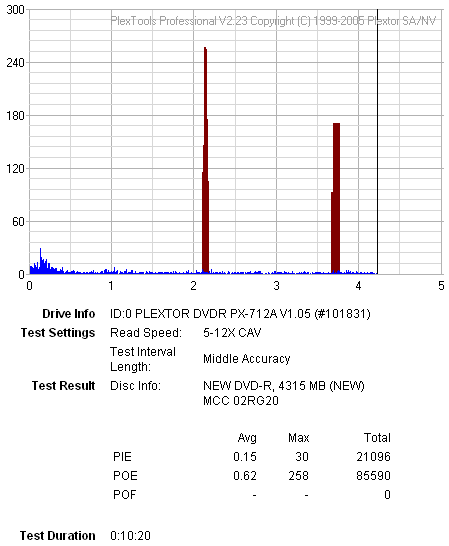

  • MKM 8X DVD-R @ 8X

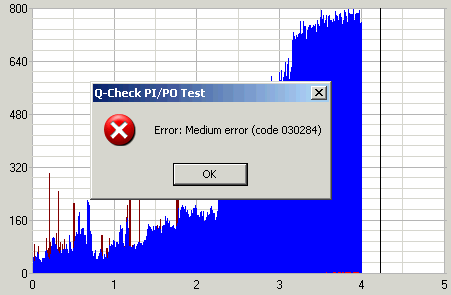

  • Optodisc 8X DVD-R @ 8X

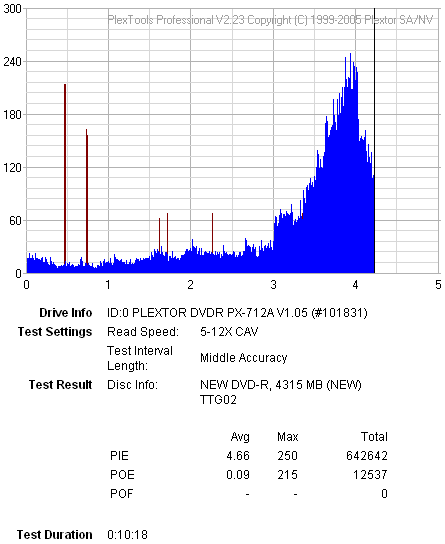

  • Ridisc(TT) 8X DVD-R @ 8X

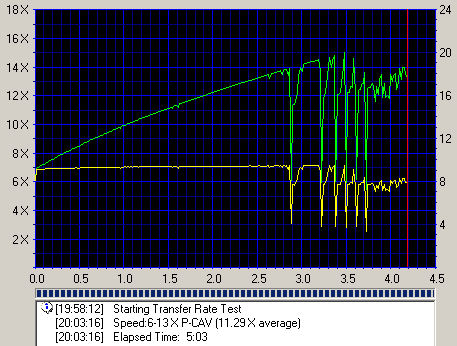

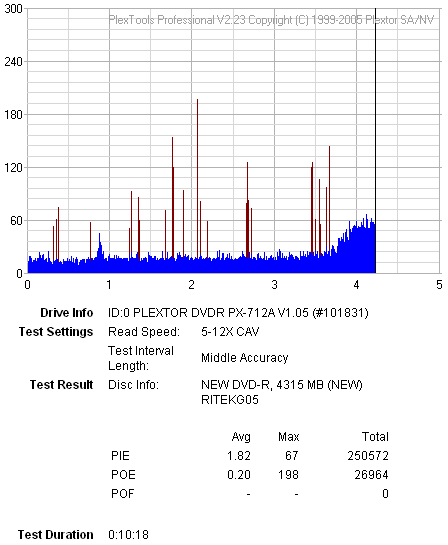

  • Ridisc(RITEK) 8X DVD-R @ 8X

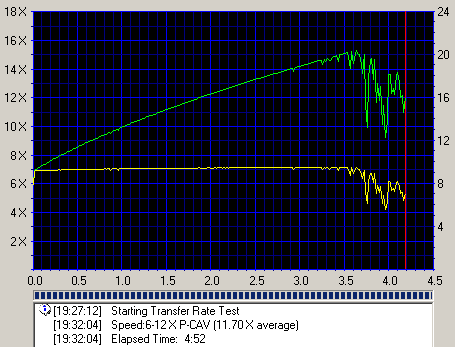

  • Traxdata 8X DVD-R @ 8X

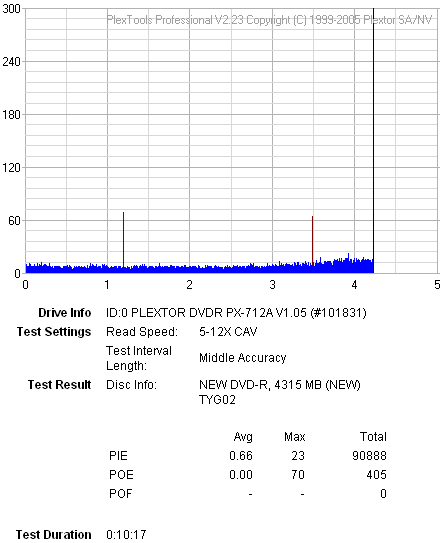

  • TY 8X DVD-R @ 8X

- Summary

Again, the 8X burning speed will better serve the end user rather than the higher 16X speed. Some good quality burns reported, with the best burn being that with the TY media.
