Memorex D² External Recorder - Page 9

On this page you can see the 3T Pit & Land Jitter graphs using various media burned at 48X CAV writing speed.

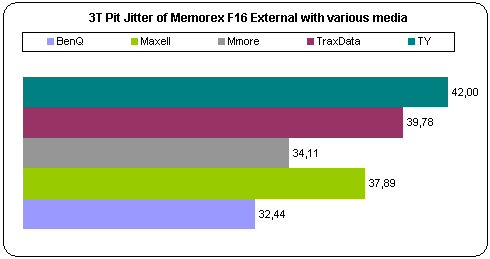

- 3T Pit results

Most media performance was not good. BenQ media gave the best performance, but jitter values were again higher than the 35nsec limit in many parts of the disc.

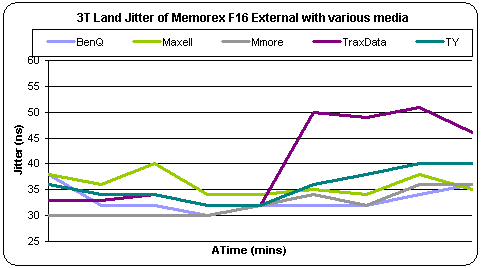

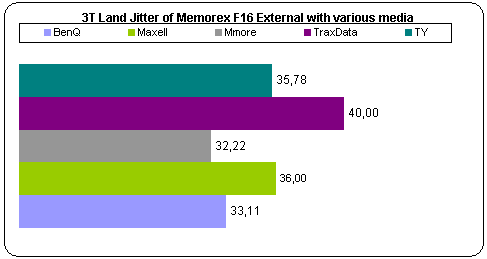

- 3T Land results

Again, the drive's performance was not good. Although best performance came with BenQ media, jitter values were again higher than the 35nsec limit.

On the following page we check the C1 and C2 error rates of the same discs, to come up with more specific conclusions.
