We start our DVD writing quality measurements with DVD-R media. A variety of different MIDs were selected and burned at the maximum allowed speed. In each of the following pages, you will find detailed information about each disc, the burning and reading procedure as well as the related signal measurements that construct the overall quality picture for each disc.

You can always navigate across to the different MIDs in this review, using the page navigation drop down menu.

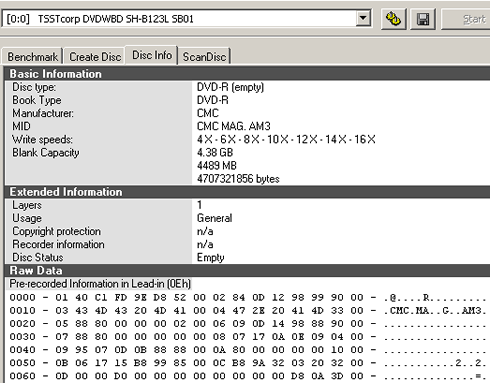

- Media Info

Brand	CMC Magnetics
Media type	DVD-R SL 4.7GB 16x
MID	CMC MAG AM3

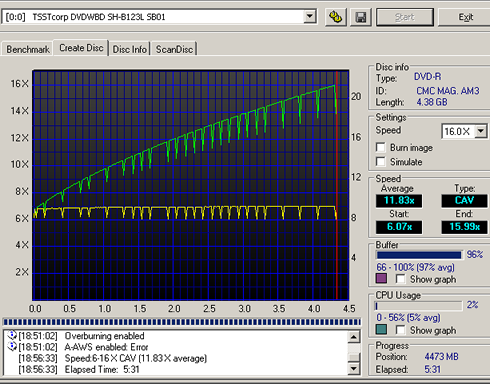

- Writing 16X CAV

Average Writing Speed: 11.83X
Writing time: 05:31 min

- Reading 16X CAV

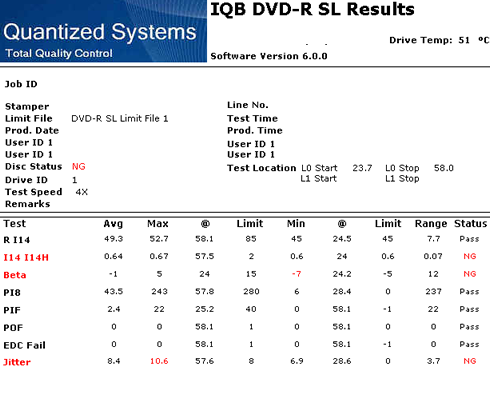

- Writing Quality - iQB OMNI

The drive's first DVD-R burn was acceptable with no uncorrectable digital errors. The PISum8 error rate reached the upper acceptable limits in the end of the data area. Jitter also reached the 10.6 (the limit is 8) at the 57.6 mm radius of the disc.
