LiteON vs LG

Apr 28,2005 0

4. CD Error Correction Tests



Review Pages

1. LG GDR8163B
2. LiteOn SOHD-16P9S
3. Transfer Rate Reading Tests
4. CD Error Correction Tests
5. DVD Error Correction Tests
6. DAE Tests
7. Protected AudioCDs
8. Protected Disc Tests
9. Quality Scans
10. Hacked Firmware for LG
11. Hacked Firmware for LiteOn
12. Conclusion



In the following tests we check both drives behavior when reading scratched / defective audio discs. The test discs used were the ABEX series from ALMEDIO.

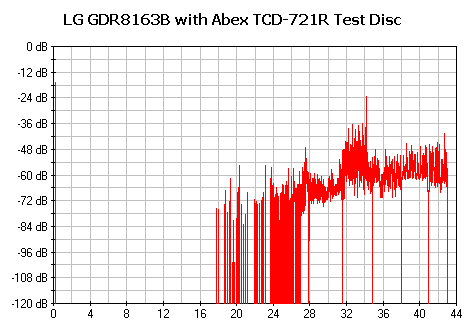

- ABEX TCD-721R

Errors total
Num: 873740
Errors (Loudness) dB(A)
Num: 50130
Avg: -74.3 dB(A)
Max: -16.7 dB(A)
Error Muting Samples
Num: 2793
Avg: 1.2 Samples
Max: 161 Samples
Skips Samples
Num: 0
Avg: 0.0 Samples
Max: 0 Samples
Total Test Result
76.8 points (out of 100.0 maximum)
C2 Accuracy
99.7 %

Errors total
Num: 1080563
Errors (Loudness) dB(A)
Num: 53891
Avg: -73.7 dB(A)
Max: -14.9 dB(A)
Error Muting Samples
Num: 3430
Avg: 1.0 Samples
Max: 9 Samples
Skips Samples
Num: 0
Avg: 0.0 Samples
Max: 0 Samples
Total Test Result
76.6 points (out of 100.0 maximum)
C2 Accuracy
99.7 %

Both drives, but especially the LG had low total error counts while the average error loudness levels were also low. Both drives had 0 skipped samples and their total test result score of 76.8 and 76.6 ( LG and LiteOn respectively) is a good indication of their good performance. Both drives produced a good C2 Accuracy score of 99.7%.

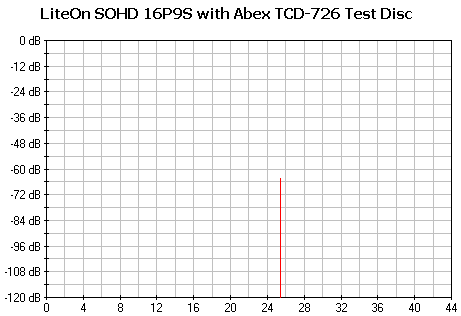

- ABEX TCD-726

Errors total
Num: 69
Errors (Loudness) dB(A)
Num: 13
Avg: -84.2 dB(A)
Max: -65.2 dB(A)
Error Muting Samples
Num: 0
Avg: 0.0 Samples
Max: 0 Samples
Skips Samples
Num: 0
Avg: 0.0 Samples
Max: 0 Samples
Total Test Result
93.0 points (out of 100.0 maximum)
C2 Accuracy
100.0 %

Errors total
Num: 137
Errors (Loudness) dB(A)
Num: 10
Avg: -69.2 dB(A)
Max: -64.6 dB(A)
Error Muting Samples
Num: 0
Avg: 0.0 Samples
Max: 0 Samples
Skips Samples
Num: 0
Avg: 0.0 Samples
Max: 0 Samples
Total Test Result
93.5 points (out of 100.0 maximum)
C2 Accuracy
100 %

Very good results for this disc also although the best drives can produce test result scores of 100.

- CD-Check Audio Test Disc

The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction / Error correction capabilities of a CD player. The disc offers a signal combination with disc error patterns to rate the drive's abilities to read music and reproduce it completely. Five tracks on the disc contain a sequence of progressively more difficult tests. These tracks are referred to as Check Level-1 through Check Level-5.

The tracks are reproduced through a software multimedia player (i.e. Windows Media Player). Each level is considered as passed, if the tone is smooth, continuous without interruptions, skipping or looping. The higher the Check Level passed, the more reliable the sound reproduction of the tested drive.

Error Level
1
2
3
4
5
LG GDR8163B 5/5 5/5 5/5 5/5 0/5

Error Level
1
2
3
4
5
LiteOn SOHD-16P9S 5/5 5/5 5/5 5/5 0/5

Both drives successfully passed four out of the five check levels for this test. This is very good performance since an average drive manages to play up to the third level while very few drives manage to read the fifth.

- Summary

Overall the error correction is good for both drives.
