LITEON DH-20A4P EZ-DUB

Mar 26,2008 0

3. CD error correction tests



Review Pages

1. Introduction, features
2. CD/DVD reading tests
3. CD error correction tests
4. DVD error correction tests
5. CD-R burning - Ritek 48x
6. CD-R burning - CMC MAG 48x
7. CD-RW burning - Verbatim 32x
8. About the DaTARIUS 2x Analyzer
9. DVD-R burning - CMCMAG AM3 16x
10. DVD-R burning - MCC 03RG20 18x
11. DVD-R burning - PRODISCS05 16x
12. DVD-R burning - RITEKF1 16x
13. DVD-R burning - TTH02 18x
14. DVD-R burning - TYG03 20x
15. DVD+R burning - DAXON AZ3 16x
16. DVD+R burning - MAXELL 003 16x
17. DVD+R burning - MCC 004 16x
18. DVD+R burning - RPODISC R05 16x
19. DVD+R burning - RICOHJPN R03 004 16x
20. DVD+R burning - RPODISC R04 16x
21. DVD+R burning - YUDEN000 T03 18x
22. DVD-RW burning - MKM 01RW6X01 6x
23. DVD+RW burning - MKM A03 8x
24. DVD-R DL burning - MKM 03RD30 8x
25. DVD+R DL burning - MKM 003 8x
26. DVD-RAM burning - MXL22 12x
27. Summary of DVD recording tests
28. EZ-DUB page 1
29. EZ-DUB page 2
30. Final words



In the following tests, we check the drive's behavior when reading scratched / defective audio discs. The test discs used were the ABEX series from ALMEDIO.

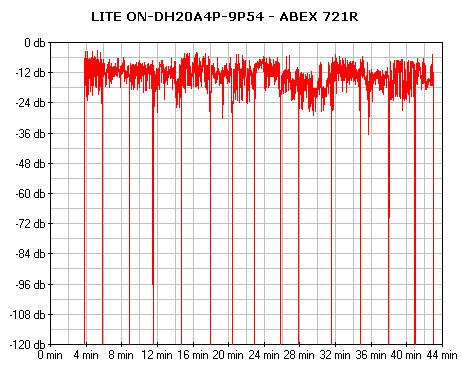

- ABEX TCD-721R

Errors total
Num : 397810731
Errors (Loudness)
Num 1882477
Avg : -23.7dB(A)
Max : -3.2dB(A)
Error Muting
Num :759291
Avg : 1,1 Samples
Max : 470 Samples
Skips
Num 15
Avg :2760.1 Samples
Max 2939 Samples
Total Test Result
47.5 points (of 100.0 maximum)
C2accuracy : 50.1%

Not a good score presenting a high level of noise.

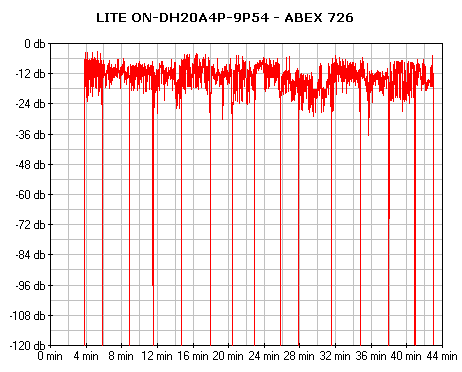

- ABEX TCD-726

Errors total
Num 397812496
Errors (Loudness)
Num 1882487
Avg : -23.7dB(A)
Max : -3.2dB(A)
Error Muting
Num :760631
Avg : 1.1 Samples
Max :470 Samples
Skips
Num :15
Avg :2760.1 Samples
Max :2939Samples
Total Test Result
47.5 points (of 100.0 maximum)
C2accuracy :50.0%

Same results here, too, with a big amount of noise being generated. Keep in mind, though, that this noise is not always audible.

- CD-Check Audio Test Disc

The CD-Check Test Disc is another tool for evaluating the Sound Reproduction / Error correction capabilities of a CD player. The disc offers a signal combination with disc error patterns to rate the drive's abilities to read music and reproduce it completely. Five tracks on the disc contain a sequence of progressively more difficult tests. These tracks are referred to as Check Level-1 through Check Level-5.

The tracks are reproduced through a software multimedia player (e.g. Windows Media Player). Each level is considered as passed, if the tone is smooth, continuous without interruptions, skipping or looping. The higher the Check Level passed, the more reliable the sound reproduction of the tested drive.

Error Level
1
2
3
4
5
LITE ON-DH20A4P-9P54
5/5
5/5
5/5
0/5
0/5

The drive managed to correctly play the first three tracks. Problems occurred with the fourth and fifth tracks. An average performance for DH20A4P
