Corsair Dominator TWIN3X2048-1800C7DFG

Nov 21,2007 0

3. Comparison with other DDR3 modules



Review Pages

1. Features, installation
2. Testing the DDR3
3. Comparison with other DDR3 modules
4. SiSoftware Sandra, RightMark
5. Science Mark 2.0, SuperPI
6. Everest Ultimate Edition 2007, PCMark05
7. Summary



The Corsair TWIN3X2048-1800C7DF G has the advantage to perform CL6 at DDR3-1600 and CL7 at DDR3-1800, therefore it has the advantage in all possible benchmarks. We wanted to compare the new memory modules with other DDR3 memory, so we used the following memory timings/cache latencies:

DDR3 comparison
Memory Frequency
Real Frequency
Voltage
FSB:RAM
CPU x
FSB
CPU Speed
DDR3 1067
CL5-5-5-15 (1T)
533,50
1.80
1:2
9
267
2403
DDR3 1150
CL5-5-5-15 (1T)
575,00
2.00
1:2
9
288
2592
DDR3 1250
CL5-5-5-15 (1T)
625,00
2.10
1:2
9
313
2817

In all cases we used the same timings and the same CPU internal multiplier. All these tests were performed with the following Bios settings:

  • AI overclocking: Manual
  • CPU Ratio Manual: 9
  • FSB Strap: Auto
  • FSB Frequency: 266~313
  • PCI Frequency: Auto
  • DRAM Frequency Manual: Auto calculated from FSB:RAM (1:2) divider
  • DRAM Command Rate Manual: 1T
  • DRAM Timing Control Manual: 5-5-5-15
  • DRAM Static Read Control: Auto
  • DRAM Dynamic Write Control: Auto
  • Transaction Booster: Auto
  • Clock Over-charging mode: Auto
  • CPU/PCIE Spectrum: Disabled
  • CPU Voltage, CPU Voltage Reference, CPU Voltage Damper, CPU PLL Voltage, DRAM Voltage, FSB Termination Voltage, North Bridge Voltage, North Bridge Voltage Reference, South Bridge Voltage: Auto

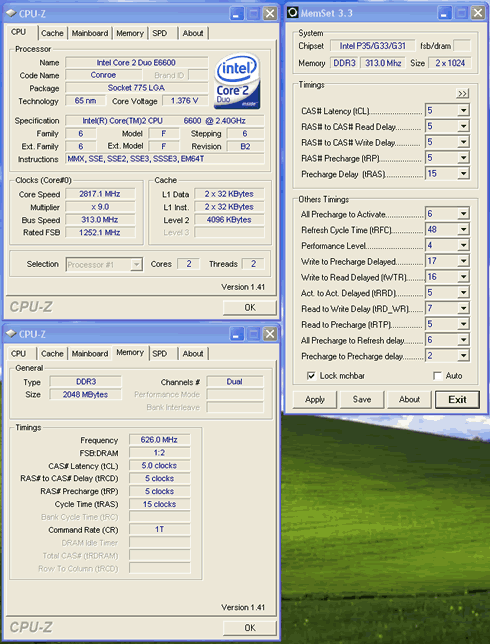

Memset offers information about what exactly memory timings Asus P5K3 Deluxe has chosen:

All test results are showed below:

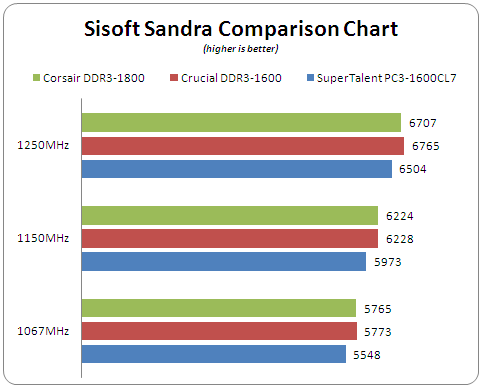

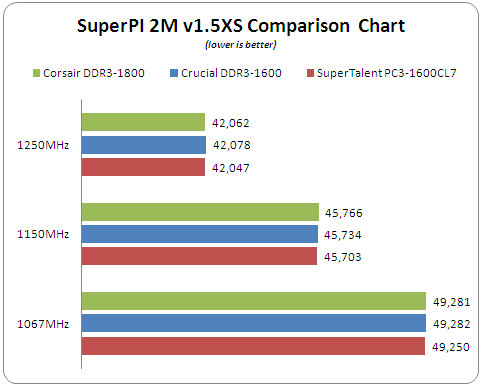

The Crucial DDR3-1600 seems to perform not only equal but better than Corsair DDR3-1800 in most Sisoft Sandra tests. Things seem to change in SuperPI, since SuperTalent had the lowest SuperPI 2M calculation time:

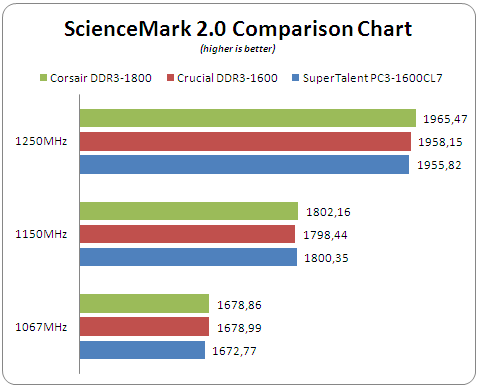

Lastly, in Science Mark, the Corsair DDR3-1800 achieved the highest performance
