Club3D Radeon HD 6950
7. Dirt 2, Overclocking
- Dirt 2 (DirectX 11)
Colin McRae: Dirt 2 (known as Dirt 2 outside Europe and stylised, DiRT) is a racing game released in September 2009, and is the sequel to Colin McRae: Dirt. The game runs on an updated version of the EGO engine, which powered Codemasters' Race Driver: Grid as well. The engine features an updated physics engine and makes pretty through use of the DX11’s tessellation abilities.
We used the latest Dirt 2 game patch and used the built-in benchmark for the resolution of 1920x1200, various quality levels and with AA enabled.
Thsi time the Club3D HD 6950 1GB is slightly slower than the GTX 460 OC, especially under demanding image quality settings:
- Alien vs Predator Benchmark v1.03 (DirectX 11)
Rebellion has released a standalone DirectX 11 PC benchmark test based upon its shooter Aliens vs. Predator. The benchmark test requires a graphics support supporting DirectX 11, which are used to produce such fancy features as tessellation, advanced shadow sampling and DX11 anti-aliasing.
We used the default settings of the benchmark (resolution: 1920 x 1200, Texture Quality: 2, Shadow Quality: 3, Anisotropic Filtering: 16, SSAO: ON, Vertical Sync: OFF, DX11 Tessellation: ON, DX11 Advanced Shadows: ON, DX11 MSAA Samples: 1).
- Lost Planet 2 Benchmark (DX9/DX11)
The Lost Planet 2 benchmark allows you to measure the performance of your graphics card using a a pre-configured route within the game. The benchmark can be run under both DX9 and DX11.

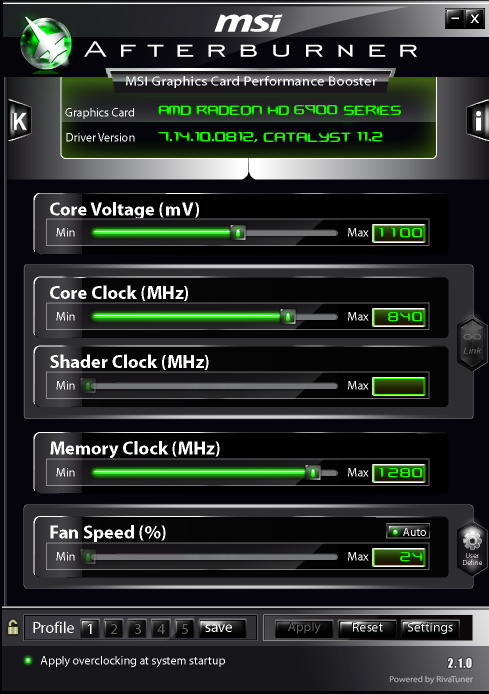

For our overclocking tests we used the latest MSI AfterBurner utility which also allows you to unlock the card's voltages for further tweaking. We enabled the 'Core Voltage' slider (though the 'settings' tab). The 'Core' and 'Shader' sliders are synched and move as one, allowing you to play with the 'Memory' slider as well. The package also includes the 'MSI Kombustor' application that stresses your graphics card and test its stability.
The overclocking with the Club3D HD 6950 was limited to 840MHz /1280 MHz (clock/memory), which is about a 5% overclock).
The Catalyst Control Panel allows for a maximum core frequency of 840MHz using the built-in AMD Overdrive tool.
