Tuesday, May 17, 2005
Ridisc Media Tests
|
|
| Average Random Access Time: |
| DVD-ROM (16X) |
120ms |
| CD-ROM (40X) |
100ms |
| DVD-RAM (2X) |
200ms |
| Average Random Seek Time |
| DVD-ROM (12X) |
115ms |
| CD-ROM (40X) |
100ms |
| DVD-RAM (2X) |
160ms |
| Sustained Data Transfer Rate: |
| DVD-ROM |
21,632KByte/s |
| DVD±R |
16,224KByte/s |
| DVD+R DL |
10,816KByte/s |
| CD-ROM/-R |
7,200 KByte/s |
| DVD-RAM |
2,704 KByte/s |
| Burst: |
| Multi Word DMA Mode 2 (ATAPI) |
16.7MB/sec |
| PIO Mode 4 (ATAPI) |
16.7MB/sec |
| Ultra DMA |
33.3MB/sec |
| Physical Characteristics: |
| Dimensions |
1.63" x 5.75" x 7.46" (41.5mm x 146mm x 189.5mm) |
| Weight |
2.20 lbs. (1.0kg) |
| Supported Disc Formats: |
| Write |
DVD-R, DVD-RW, DVD+R, DVD+R DL, DVD+RW, CD-R, CD-RW, High Speed CD-RW, Ultra Speed CD-RW |
| Read |
DVD-ROM, DVD-R/RW, DVD+R, DVD+R DL, DVD+RW, DVD-RAM, CD-DA, CD+G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video-CD), Multi-session CD (Photo CD, CD-Extra, Portfolio, CD-R, CD-RW) |
| Environmental: |
| Operation Temperature |
41°F - 122°F (5°C to 50°C) |
| Other: |
| Buffer Size |
2MB |
| Power Requirements |
DC 5V/12V |
| MTBF |
100,000 POH |
- 4X DVD+R @ 4X
- 4X DVD-R @ 4X

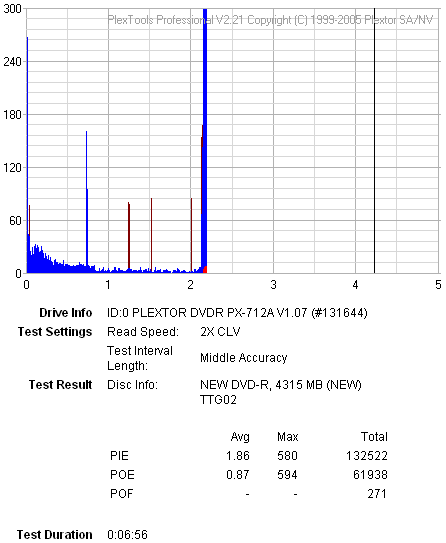

- 8X DVD-R @ 8X ( TTG02)

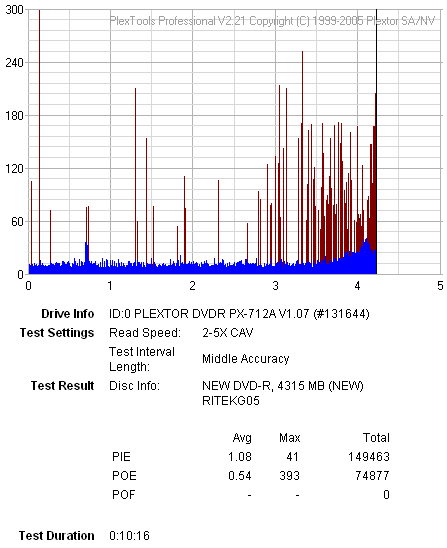

- 8X DVD-R @ 4X ( RITEK G05)

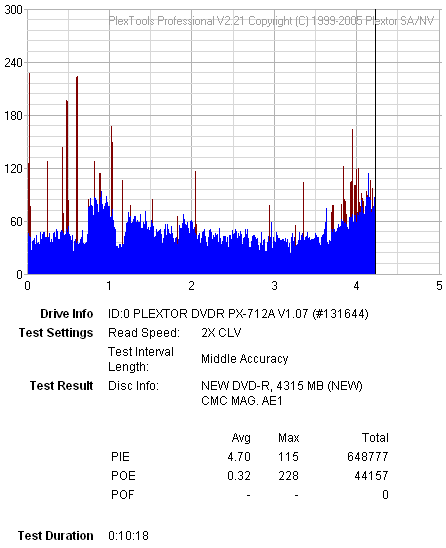

- 8X DVD-R @ 8X ( CMC MAG AE1)
- 16X DVD+R @ 16X ( CMC MAG M01)
- Summary
| Media |
Code ID |
Speed |
Time |
| 4X DVD+R |
RICOHJPNR01 |
4X |
14:22 |
| 4X DVD-R |
RITEK G04 |
4X |
14:45 |
| 8X DVD-R |
TTG02 |
8X |
9:39 |
| 8X DVD-R |
RITEK G05 |
4X |
14:42 |
| 8X DVD-R pr. |
CMC MAG AE1 |
8X |
14:47 |
| 16X DVD+R |
CMC MAG M01 |
16X |
6:01 |
|
