- Writing Tests

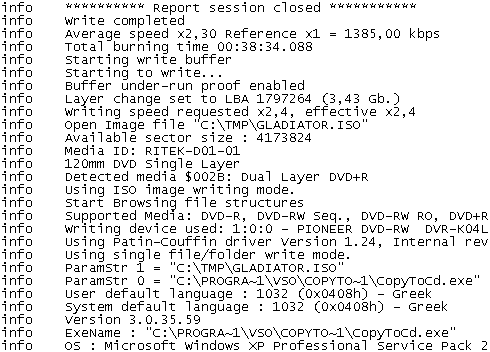

We burned two DVD+R DL discs with DVD-Video content. The source disc was "Gladiator Movie - Special Edition" disc1 with a total size of 6.86GB. First, we transferred the movie to the hard disc with DVD Decrypter in ISO format (single file). Afterwards, we used CopyToDVD v3.0.0.26.

Traxdata DL

The writing process was finished after 38:35 minutes. The average speed was 2.29X as reported by CopyToDVD software. The recorded disc had DVD+R9 format booktype setting.

Verbatim DL

The writing process was finished after 38:34 minutes. The average speed was 2.30X as reported by CopyToDVD software. The recorded disc had DVD+R9 format booktype setting.

Disc Label	Disc Information	Max Allowed Writing Speed	Total Recording Time (mins)
Traxdata 2.4X	RITEK D01	2.4X	38:35
Verbatim 2.4X	MKM 001	2.4X	38:34

For comparison reasons, we post DL burning times for other writers, with the same disc content and same recording software:

Drive	Time (mins)
Pioneer K14L	38:34
NEC ND-6500A	37:42
BenQ DW1600A DL	40:16
BenQ DW830A	39:14
LiteON SOHW-832S DVD+R DL BookType	38:33
LiteON SOHW-832S DVD-ROM BookType	38:36
SONY DRU-700A	38:39
LG GSA-4120B	38:12
ASUS DRW-1604P (4X)	23:10
ASUS DRW-1604P (2.4X)	38:08
Pioneer DVR-108A (4X)	23:10
Pioneer DVR-108A (2.4X)	38:23
LiteON SOHW-1633S	38:34
BenQ DW1620A	40:03
