The AEC-1000 consists of a DVD Drive and the "ALChecker" error measurement application which can check the written data quality. The application is capable of 1X CLV measurement as well as 4X CLV on DVD-Video/ROM and finalized DVD+R/-R media.

There are three measurement modes:

• Fine Mode: checks a series of eight consecutive ECC blocks,
• Rough Mode: checks eight consecutive ECC blocks every 100h ECC blocks
• Quick Mode: checks three specified areas

The checking status is shown graphically in real time while you can save the error graph at the end of the test. The reported errors are the PI and the UncPO. In the case of PI, it counts the number of rows corrected by the PI error correction in each group of eight consecutive ECC blocks. In the case of UncPO, it counts the number of ECC blocks in which more than one byte is uncorrectable in eight consecutive ECC blocks. For our quality scans, we set for 1X CLV and Fine Mode which is the slowest and with the safest results.

- Datawrite Yellow 8X DVD-R @ 4X

- Ricoh 8X DVD+R @ 8X

- Datawrite Titanium 8X DVD+R @ 6X

- Optodisc 8X DVD-R @ 4X

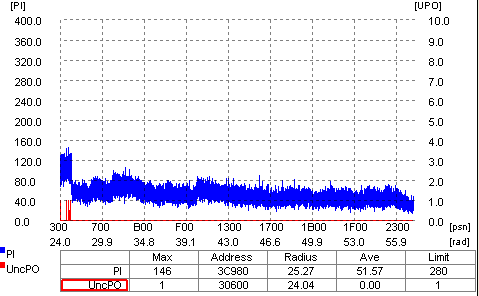

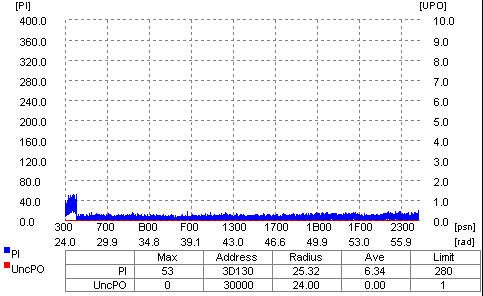

Two out of four media tested were found to be of good condition. The Datawrite -R burned at 4X and Ricoh +R 8X certified but burned at 4X speed managed to pass this test, while the other two tested media reported high PI and PO values and thus failing the Q-Check test.
