In the following tests, we check the drive's behavior when reading scratched / defective audio discs. The test discs used were the ABEX series from ALMEDIO.

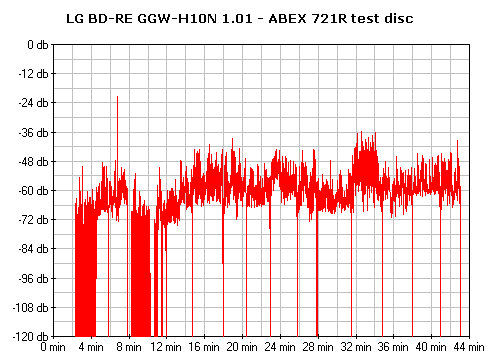

- ABEX TCD-721R

Errors total	Num: 2346642
Errors (Loudness) dB(A)	Num: 125264	Avg: -75.7 dB(A)	Max: -21.3 dB(A)
Error Muting Samples	Num: 6856	Avg: 1.2 Samples	Max: 582 Samples
Skips Samples	Num: 0	Avg: 0 Samples	Max: 0 Samples
Total Test Result	74.9 points (out of 100.0 maximum)

The LG BD-RE GGW-H10N drive achieved a relatively good score with the ABEX TCD-721R test disc compared with scores returned with other drives. The loudness errors were in the main below the -50dB limit (which is the maximum limit for non audible errors according to the author of the specific EAC utility). However, the drive started reporting errors quite early.

- ABEX TCD-726

Errors total	Num: 18072
Errors (Loudness) dB(A)	Num: 4381	Avg: -85.5 dB(A)	Max: -17.6 dB(A)
Error Muting Samples	Num: 70	Avg: 4.6 Samples	Max: 131 Samples
Skips Samples	Num: 1	Avg: 588.0 Samples	Max: 588 Samples
Total Test Result	68.6 points (out of 100.0 maximum)

A CD error correction failure for the LG BD-RE GGW-H10N drive, which achieved a score of 68.6 out 100. The drive could not correct all the data for the specific test disc.

- CD-Check Audio Test Disc

The CD-Check Test Disc is a very useful tool for evaluating the Sound Reproduction / Error correction capabilities of a CD player. The disc offers a signal combination with disc error patterns to rate the drive's abilities to read music and reproduce it completely. Five tracks on the disc contain a sequence of progressively more difficult tests. These tracks are referred to as Check Level-1 through Check Level-5.

The tracks are reproduced through a software multimedia player (e.g. Windows Media Player). Each level is considered as passed, if the tone is smooth, continuous without interruptions, skipping or looping. The higher the Check Level passed, the more reliable the sound reproduction of the tested drive.

Error Level	1	2	3	4	5
HP dvd1035i	5/5	3/5	2/5	0/5	0/5

The drive achieved flawless reading only with the first track. Playing the second and third tracks produced numerous clicks on our speakers, while the playback of the fourth and fifth tracks was pretty noisy. This is below average, poor performance.

- Summary

Concluding, the LG BD-RE drive seems to have an average response to CD Errors with its error hiding mechanism at its best (as far as the 721R test disc is concerned) and with remarkable problems during the playback of the Audio Test Disc which started giving back clicks to our speakers from the second track where the artificial defects are not that serious.
