The FOX ONE central control system is designed exclusively for FOXCONN motherboards with Intel chipsets. It enables the automatic monitoring of a PC's system status, including system frequencies, voltages and temperatures, as well the automatic and intelligent adjustment of major system components. It also gives users the ability to make extensive manual adjustments. FOX ONE Technology enables users to choose between 4 modes: Auto, Power Gaming, Data Mining and Energy Saving. FOX ONE makes it easy for users to tailor their systems to match performance needs, without the risk of damaging the CPU or other components.

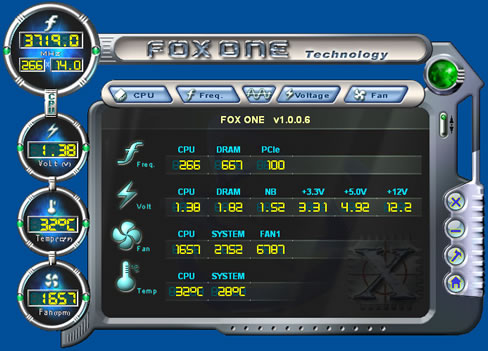

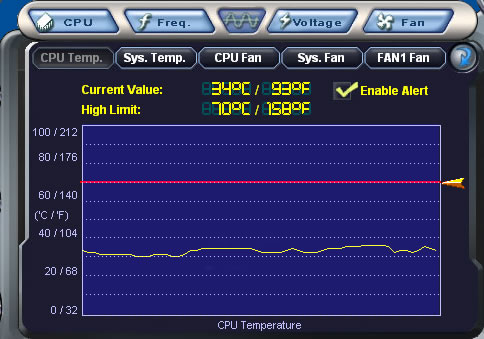

FOX ONE provides you with all the relevant information, regarding your motherboard's state, while working.

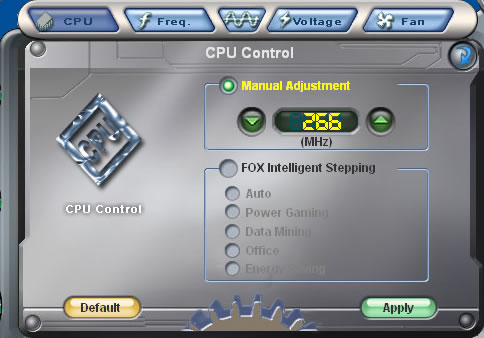

You can manually increase the speed of you processor by increasing the FSB. Alternatively, there are four preset modes, Power Gaming, Data Mining, Office and Energy Saving.
There is also an option to set the speed of your DDR2 memory. Note, that adjusting the FSB automatically changes the DRAM frequency and vice versa.
You can manually increase the voltage of your CPU, DRAM and NB for higher stability.

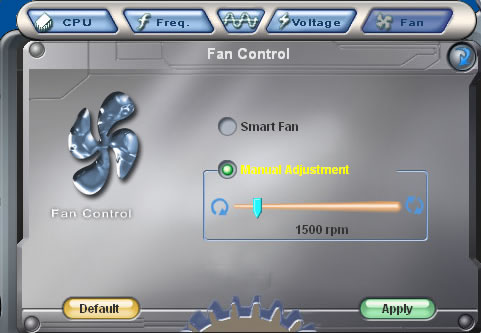

The rotation speed of the CPU's cooling system fan is also something you can adjust.
