Samsung TS-H552 DL Recorder - Page 9

Writing Quality Tests - 3T Jitter Tests

On this page, we present the 3T Pit & Land Jitter graphs when using various media burned at 40X P-CAV writing speed. According to the Red Book, the jitter levels should be below 35ns.

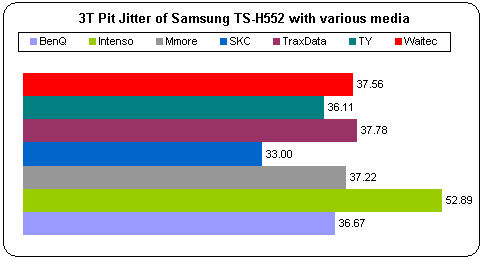

- 3T Pit results

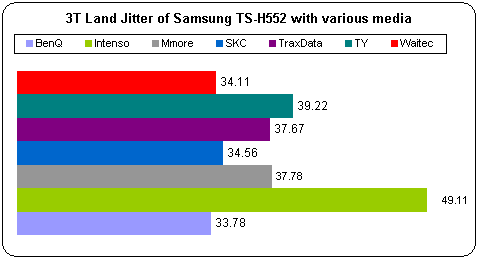

- 3T Land results

The jitter levels are generally above the 35ns Red Book limit with most media and especially Intenso media which reported extremely high jitter levels. Some media managed to stay close to the limit, such as SKC which seems to present the better overall quality. However, we consider that recording at 40X did not produce the best possible results.
