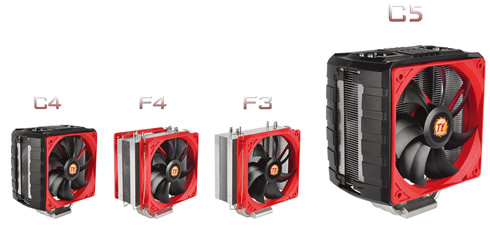

Thermaltake today announced the NiC Series CPU Coolers. Consisting of the F3, F4, C4, and C5 models, the series achieve great RAM clearance allowing you to install high end overclocking RAM with ease.

The F3, F4, C4, and C5 coolers come with TDP ratings of 160W, 180W, 200W and 230W respectively. Heat is conducted from the CPU onto the cooler through the thick nickel coated copper base and then onto the aluminum fins with 3 ? 5 Φ6mm U-shaped heat-pipes. Furthermore, users can opt for something smaller and cooled with a single 120mm fan, or go for coolers that have shrouds to contain the air flow, or go with a pair of 120mm fans to allow for the best performance of both selections of the Nic series line.

The 0.4mm thick aluminum fin are designed in a curved shape to reduce backpressure and at the same time maximize airflow through them.

Single 120mm PWM fan (F3), dual 120mm PWM fans (F4) with automatically adjustable silent fan blades at a range of 800-1600rpm; or both VR fans (C4/C5) are contacted to an adjustable fan speed knob where the fans speed can be manually adjusted from 1000-2000rpm. Tool-less fan clip design also makes installation easy.

Specifications

	NiC F3	NiC F4	NiC C4	NiC C5
P/N	CLP0605	CLP0606	CLP0607	CLP0608
Compatibility	Intel LGA 2011/1366/1155/1156/1150/775 AMD FM2/FM1/AM3+/AM3/AM2+/AM2
Heatsink Dimension	152H*140W*50L mm		160H * 140W * 50L mm
Heatsink Material	Aluminum Fins Copper Heatpipes		Aluminum Fins cu base Copper Heatpipes
Heatpipe	Φ6mm x 3 pcs	Φ6mm x 4 pcs	Φ6mm x 4 pcs	Φ6mm x 5 pcs
Fan Dimension	120 x 120 x 25 mm(L xW x H)
Fan quantity	1pcs	2 pcs	2 pcs	2 pcs
Fan Speed	800-1600RPM		1000-2000RPM
Rated Voltage	12V
Start Voltage	9.0V
Rated Current	0.17A		0.32A
Power Input	2.04W		3.84W
Air Flow	79.283CFM		99.1 CFM
Air Pressure	1.911 MM-H2O		2.99 MM-H2O
Noise	18.0~ 30.2 dBA		20 ~39.9 dBA
Life time/Fan Life time	40,000 hours
Fan control	PWM		VR
pin connect	4 pin		3 pin
Cooling Power	160W	180W	220W	230W
Weight	555g	688 g	794 g	811 g
