DVD Error Correction Tests

In the following tests we examined the DVD reading capabilities of the NEC ND-2500A drive with scratched / defective DVD media. For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test media come from ALMEDIO.

- Single Layer media

ABEX TDR-821

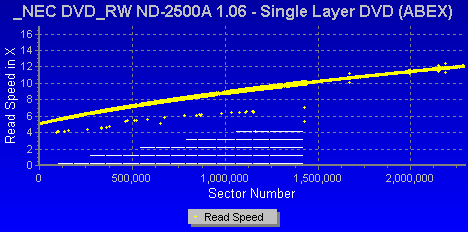

This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm. The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.

The drive read the contents of the 821 test disc without reporting any reading error. There were no speed deviations while reading the defective areas on the disc's surface. The resultant graph is clean and smooth.

ABEX TDR-825

This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on the surface and instead defective areas ranging in dimensions from 0.5 to 1.1 mm. There are also fingerprints with height between 65 and 75 micrometers.

Again a very clean effort. The drive managed to successfully read the defective areas on the disc.

- Dual Layer media

ABEX TDR-841

This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.

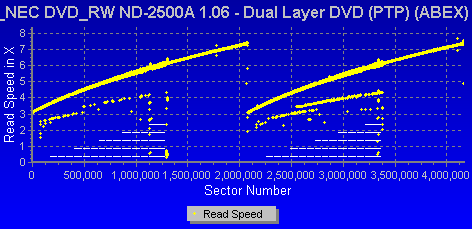

Once again the disc was read without any reading errors. However, the drive had a few more problems reading this disc. The yellow dots which have formed what is almost a second line below the main, thicker line over the defective areas, especially in the second layer, are the drive's attempts to read through the defects by changing (droppping) speed.

ABEX TDR-845

This disc is a single sided, dual layer DVD-ROM disc with capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 is that the first includes both defective areas and fingerprints. The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints have height sized from 65 to 75 microns (micrometers).

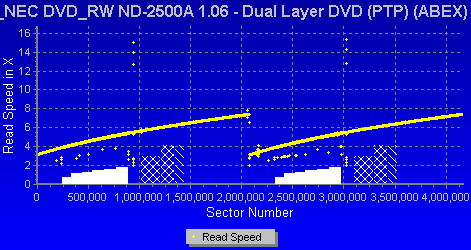

The test finished successfully without reporting any error. Again a very clean output.

ABEX TDV-541

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The disc is based on the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals for DVD sound files. The current TDV-541 also checks the error correcting capabilities of the drive and includes scratches sized from 0.4 to 3.0 mm.

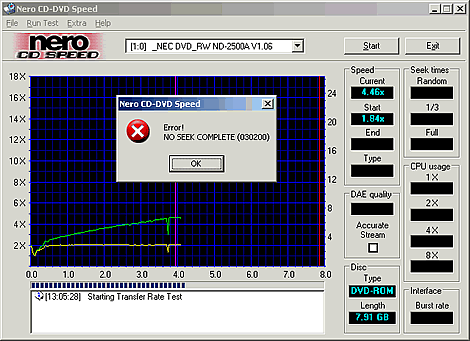

Unfortunately the drive did not manage to read the contents of the ABEX TDV-541 test disc. As can been seen from the graph above, reading failed while reading the beginning of the second layer of the disc. We made several attempts but the drive failed each time.

ABEX TDV-545

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer Video/S-2 disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the disc's surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometer high fingerprints.

This test disc posed no problems for the NEC drive, which read past the black dots and fingerprints on the disc's surface. The maximum speed of 4.59x however was a little slow.
