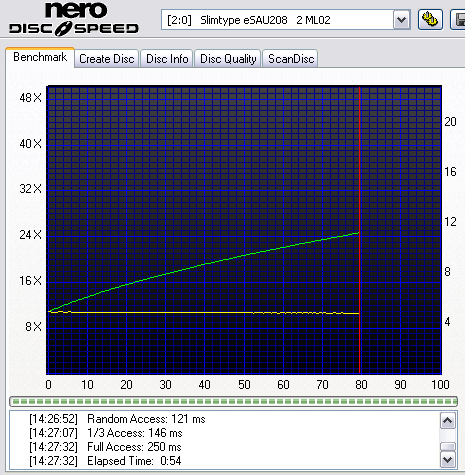

For our CD transfer rate tests, we used the Nero CD-Speed utility and a set of data and audio CD-R/RW/ROM. The drive can read CD media at a maximum speed of 24X.

For each CDSpeed graph, you can click on the image to see the complete screenshot, including full measurements.

-CD-ROM

- US RW

The following CD Speed graph shows the reading performance with US-RW media. Reading reached a maximum of 24x, as per the specifications.

- AudioCD

In the CD Speed Advanced DAE quality test, the drive's average speed was 17,06X with a quality score of 100.0

A typical DAE task with an 80min non-protected Audio CD produced 17.1X average ripping speed. Not bad at all for a small drive.

- 90 mins Audio disc

DVD Format

Now let's take a look at how the drive performs with DVD media. This time, a set of SL and DL DVD media was used. The drive is capable of reading at 8X maximum speed for single layer DVD ROM and at 6X for dual layer DVD ROM media.

- DVD-ROM SL

- DVD-ROM DL

- PTP DVD-ROM

The two layers of a PTP DVD-ROM disc are read sequentially with the drive starting reading from the inner part of the disc, which is the beginning of each layer, progressing towards its outer range.

- OTP DVD-ROM

The first layer of an OTP dual layer DVD-ROM is read exactly the same way as the first layer of the PTP disc we tested previously. The difference here is the reading strategy of the second layer of the disc. The beginning of the second layer is located in the outer part of the disc, so the drive starts reading from the outer tracks and progresses towards the inner part of the disc.

- DVD-R

- DVD-RW

- DVD+R

- DVD+RW

- DVD+R DL

-DVD-R DL

-DVD RAM (5x)

- DVD Video Ripping

Ripping of a single layer DVD movie:

- Summary of reading tests

The LiteOn drive performed according to its specifications. Most reading processes were flawless with the drive not having a hard time to complete them.
