LITE-ON LH-20A1P

Feb 6,2007 0

2. CD/DVD Reading tests



Review Pages

1. Introduction
2. CD/DVD Reading tests
3. CD Error Correction
4. DVD Error Correction
5. Daxon CD - Quality tests
6. Verbatim CD - Quality tests
7. Moser Baer CD - Quality tests
8. Taiyo Yuden CD - Quality tests
9. The DaTARIUS DVD Analyzer R 2x
10. CMC MAG E01 (000)
11. CMC MAG M01 (000)
12. MAXELL 003 (000)
13. MCC 004 (000)
14. PRODISC R04 (004)
15. PRODISC R05 (001)
16. YUDEN000 T03 (000)
17. YUDEN000 T02 (000)
18. RITEK R04 (001)
19. CMC MAG AM3
20. DAXON016S
21. INFODISC-R20
22. MBI 01RG40
23. MCC 03RG20
24. ProdiscF02
25. ProdiscS05
26. RITEKF1
27. RITEKG05
28. TTH02
29. MKM 01RD30
30. MKM 03RD30
31. MKM 003 (000)
32. MKM 01RW6X01
33. RITEKW06
34. MKM A03 (000)
35. RICOHJPN W21 (001)
36. MXL 16
37. Burned Media List
38. Supported Media List
39. Conclusion



For our CD transfer rate tests, we used the Nero CD-Speed utility and a set of Pressed CDs. The drive can read CD media at a maximum speed of 48X. For these tests, we present a comparison of the LiteOn DVDRW drive with the Plextor PX-760A, Optiarc AD 7170A and Samsung SH S182D drives. See the full CDSpeed graph photos by clicking on them.

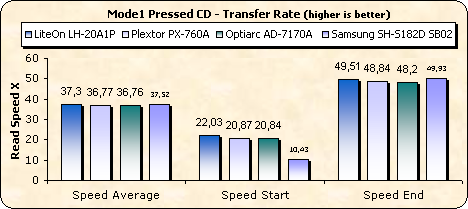

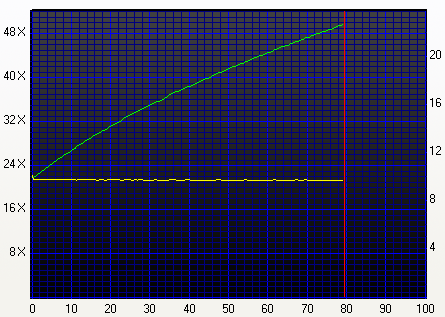

Pressed CD

Press for Larger Picture

US RW CD

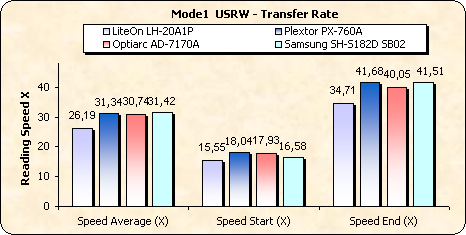

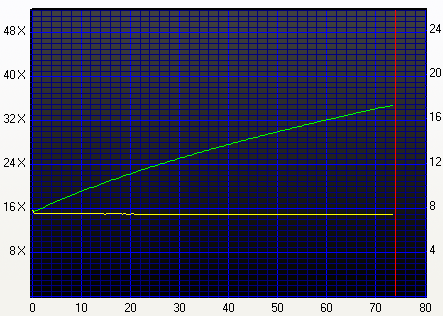

The following CD Speed graph shows the reading performance with US-RW (32X) media.

Press for Larger Picture

The Liteon drive is slower than the others, supporting up to 32X reading speed with rewritable media.

- AudioCD

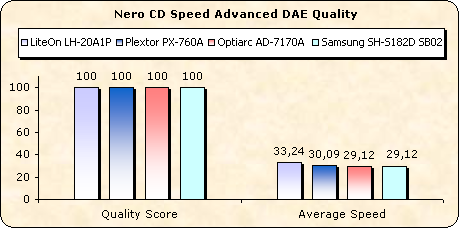

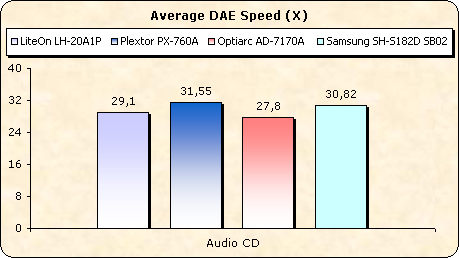

In the CD Speed Advanced DAE quality test, the drive's average speed was 33.24X with a quality score of 100.

A typical DAE task with an 80min non-protected Audio CD produced 29.1X average ripping speed.


- 90/99 mins Audio disc

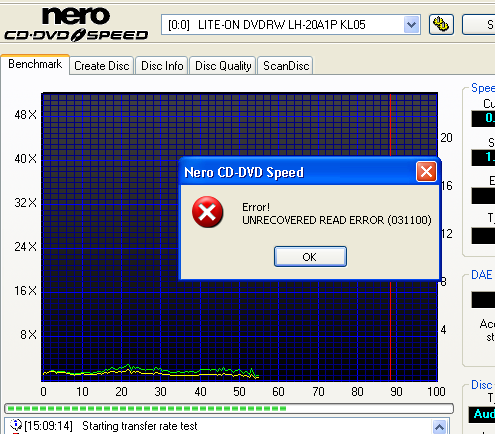

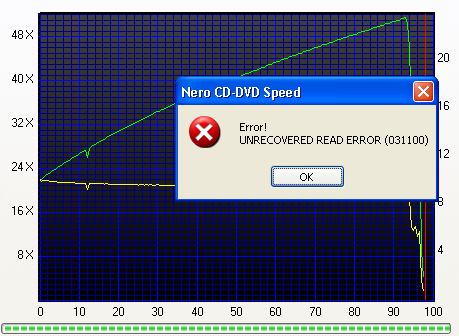

Both the 90min and the 99 min audio CD readings produced an error, as you can see in the screenshots above.

- DVD Format

Now let's have a look at how the drive performs with DVD media. This time, a set of SL and DL DVD media was used. The drive is capable of reading at 12X maximum speed for single layer and at 8X for dual layer media.

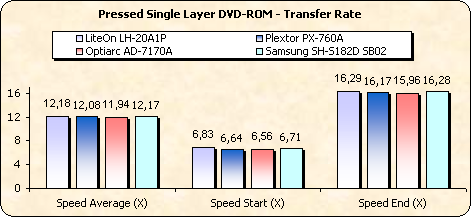

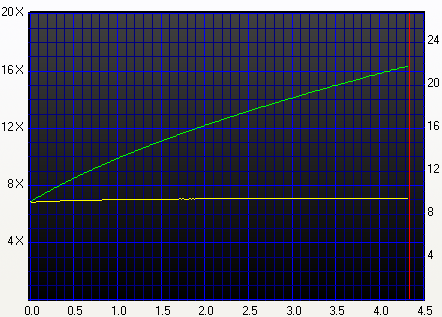

DVD-ROM SL media -

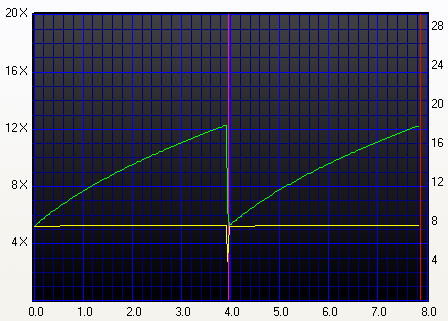

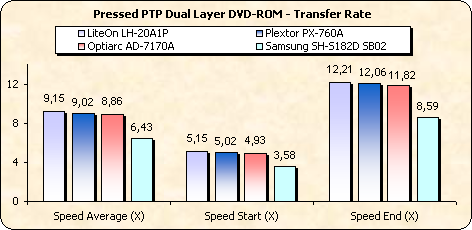

PTP DVD-ROM -

The two layers of a PTP DVD-ROM disc are read sequentially with the drive starting reading from the inner part of the disc, which is the beginning of each layer, progressing towards its outer range.

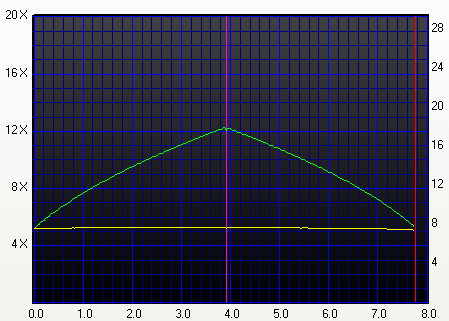

OTP DVD-ROM -

The first layer of an OTP dual layer DVD-ROM is read exactly the same way as the first layer of the PTP disc we tested previously. The difference here is the reading strategy of the second layer of the disc. The beginning of the second layer is located in the outer part of the disc, so the drive starts reading from the outer tracks and progresses towards the inner part of the disc.

- DVD-R /-RW

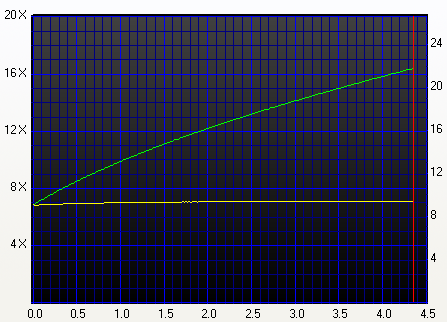

16X CAV reading strategy for DVD-R and DVD-RW media:

DVD-R

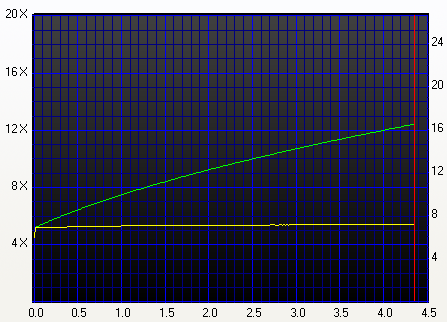

DVD-RW

- DVD+R /+RW

DVD+R

DVD+RW

- DVD+R DL

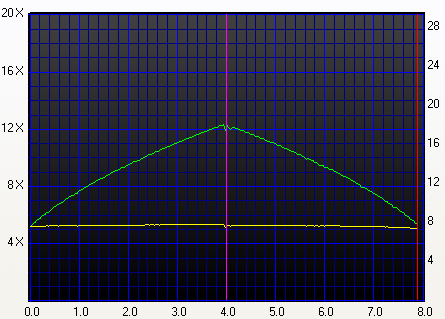

-DVD-R DL

-DVD-RAM

The drive supports reading of 5x as well as 12x DVD-RAM media. Below is the reading strategy with Maxell 5x DVD-RAM. The test will be updated soon with the addition of readings of 12x (RAM2) media.

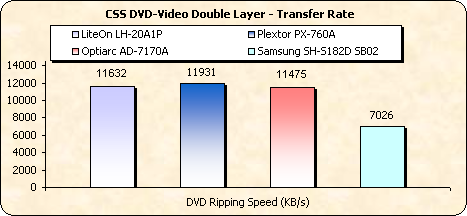

- DVD Video Ripping speed.

Average - 11.632 KB/S (8.4x)
Maximum - 17.285 KB/s (12.5x)
