Asus DRW-1608P

May 19,2005 0

13. CDSpeed/PlexTools Scans - Page 2



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. Writing Quality Tests - Clover System Tests
10. Writing Quality Tests - C1 / C2 Error Measurements
11. DVD Recording Tests
12. CDSpeed/PlexTools Scans - Page 1
13. CDSpeed/PlexTools Scans - Page 2
14. CDSpeed/PlexTools Scans - Page 3
15. CDSpeed/PlexTools Scans - Page 4
16. CDSpeed/PlexTools Scans - Page 5
17. CDSpeed/PlexTools Scans - Page 6
18. CDSpeed/PlexTools Scans - Page 7
19. Writing Quality Tests - Almedio AEC-1000
20. DVDR DL - Page 1
21. DVDR DL - Page 2
22. 1608P vs SA300
23. Bitsetting
24. Conclusion



In order to test the writing quality and readability of the burned media we used two readers with two software applications:

  • The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
  • The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.

In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we oversped the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.

The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

12X DVD-R Writing Speed

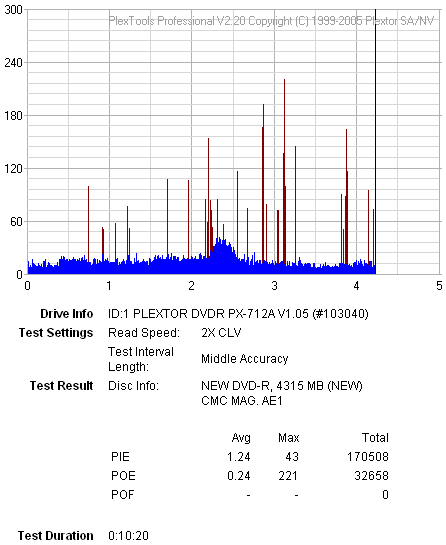

  • CMC Magnetics 8X DVD-R @ 12X

  • Datawrite 8X DVD-R @ 12X

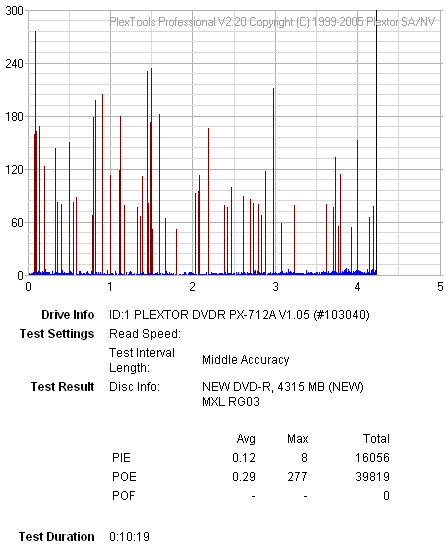

  • Maxell 8X DVD-R @ 12X

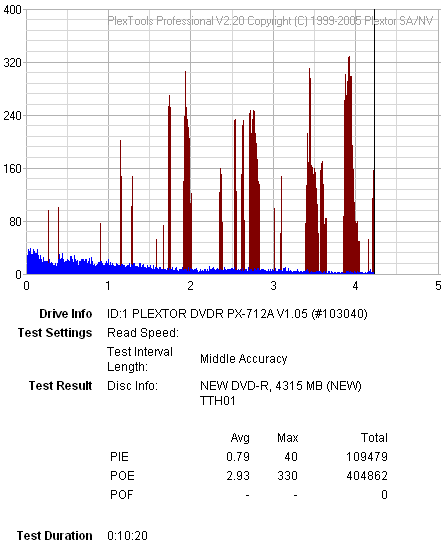

  • TDK 8X DVD-R @ 12X

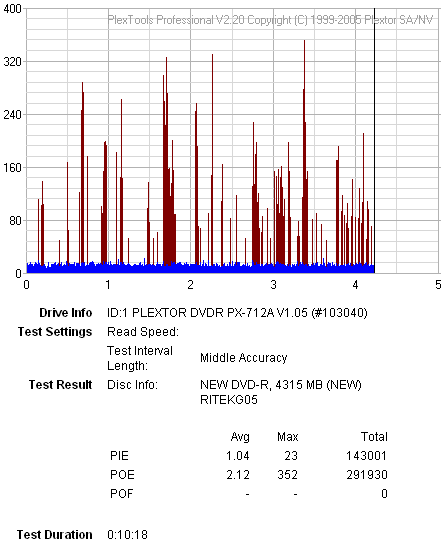

  • Traxdata 8X DVD-R @ 12X

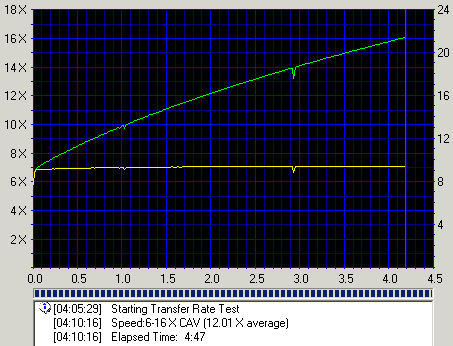

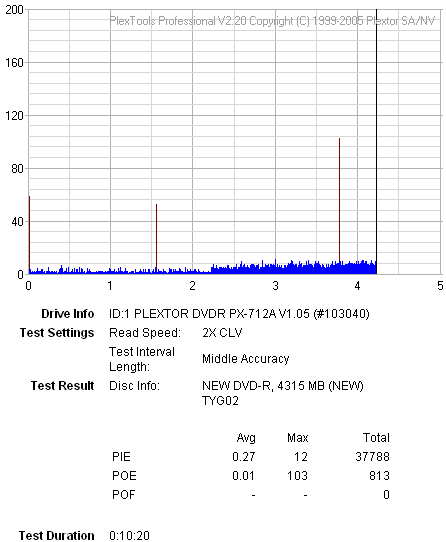

  • TY 8X DVD-R @ 12X

- Summary

High incidence of POE in most cases but generally good results with the being with TY media.
