Asus DRW-1608P

May 19,2005 0

5. Protected Disc Tests



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. Writing Quality Tests - Clover System Tests
10. Writing Quality Tests - C1 / C2 Error Measurements
11. DVD Recording Tests
12. CDSpeed/PlexTools Scans - Page 1
13. CDSpeed/PlexTools Scans - Page 2
14. CDSpeed/PlexTools Scans - Page 3
15. CDSpeed/PlexTools Scans - Page 4
16. CDSpeed/PlexTools Scans - Page 5
17. CDSpeed/PlexTools Scans - Page 6
18. CDSpeed/PlexTools Scans - Page 7
19. Writing Quality Tests - Almedio AEC-1000
20. DVDR DL - Page 1
21. DVDR DL - Page 2
22. 1608P vs SA300
23. Bitsetting
24. Conclusion



- Reading Tests

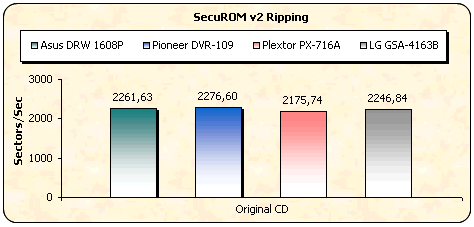

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

Game Title Protection Scheme Duration Reading speed
PSX "NBA Jam Extreme" Lybcrypt 3:50 min 393 sectors/sec
Serious Sam The Second Encounter v1.07 SafeDisc v.2.60.052 55.28 min 101 sectors/sec
VRally II SecuROM v.2 2:32 min 2262 sectors/sec

The ASUS drive only performed well when ripping the Securom2 protected disc to the HDD. The drive is extremily slow with Safedisc2 and PSX discs.

- Writing Tests

The drive supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

  • Fifa 2004 - Safe Disc v3.1x
  • The Sims Superstar - Safe Disc v2.9x
  • The Sims Unleashed - Safe Disc v2.8x
  • Serious Sam Second Encounter - Safe Disc v2.51.021
  • Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

Drive

Fifa 2004
SD v3.1

Sims Superstar SD v2.9 Sims Unleashed SD v2.8 Serious Sam-Second Encounter
SD v2.51.051
Max Payne
SD v2.51.020
EFM OFF EFM ON EFM OFF EFM ON EFM OFF EFM ON EFM OFF EFM ON EFM OFF EFM ON
Toshiba
SD-M1502
No Yes
Creative CD5233E

ASUS DRW-1608P

The drive can only accurately backup up to SD v2.51.201. Newer versions of SafeDisc 2 cannot be accurately backed up, either with the EFM Correction option enabled or disabled.
