Toshiba SD-R5372

Apr 11,2005 0

5. Protected Disc Tests



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. Writing Quality Tests - 3T Jitter Tests
10. Writing Quality Tests - Clover System Tests
11. DVD Recording Tests
12. CDSpeed/PlexTools Scans - Page 1
13. CDSpeed/PlexTools Scans - Page 2
14. CDSpeed/PlexTools Scans - Page 3
15. CDSpeed/PlexTools Scans - Page 4
16. CDSpeed/PlexTools Scans - Page 5
17. CDSpeed/PlexTools Scans - Page 6
18. CDSpeed/PlexTools Scans - Page 7
19. CDSpeed/PlexTools Scans - Page 8
20. CDSpeed/PlexTools Scans - Page 9
21. DVD+R DL - Page 1
22. DVD+R DL - Page 2
23. BookType Setting
24. Supported Media list
25. Conclusion



- Reading Tests

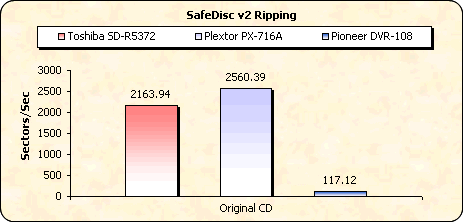

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

Game Title
Protection Scheme
Duration
Reading speed
PSX "NBA Jam Extreme"
Lybcrypt
00:53 min
1705 sectors/sec
Serious Sam The Second Encounter v1.07
SafeDisc v.2.60.052
02:35 min
2164 sectors/sec
VRally II
SecuROM v.2
02:19 min
2473 sectors/sec

Excellent performance. The drive was fast in all tasks. It managed to rip the PSX and the SecuROM protected titles faster than the Plextor. With SafeDisc protection, it was also very fast with Plextor leading the race there.

- Writing Tests

The drive supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After copying the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

  • Fifa 2004 - Safe Disc v3.1x
  • The Sims Superstar - Safe Disc v2.9x
  • The Sims Unleashed - Safe Disc v2.8x
  • Serious Sam Second Encounter - Safe Disc v2.51.021
  • Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

Drive

Fifa 2004
SD v3.1

Sims Superstar SD v2.9
Sims Unleashed SD v2.8
Serious Sam-Second Encounter
SD v2.51.051
Max Payne
SD v2.51.020
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
EFM OFF
EFM ON
Toshiba
SD-M1502
No
Yes
Creative CD5233E

Toshiba SD-R5372

Unfortunately, the drive cannot create working backups for most of the SafeDisc protection schemes. It seems that Toshiba chose to ignores this aspect and who can blame them.
