OCZ PC-4200EL Memory Review
2. Test Setup - PC settings
OCZ PC-4200EL Memory - Page 2
- Test Setup
| Processor | Retail Intel Pentium 4 2.4C |
| CPU Cooler | Zalman 7000Cu |
| Case | Antec 1080AMG |
| Tested MotherBoard | MSI Neo2 – FISR (firmware v2.10) |
| ASUS P4C800-E Deluxe (firmware 1014) | |
| Videocard | ATI Radeon 9600Pro |
| Memory | 2x256MB OCZ EL PC-4200 |
| Hard Disk Drive | WD800JD 80GB 7200RPM |
| CD-RW | LiteOn LTR-52246S |
| PowerSupply | Levicom 500Watt |
| Software Setup | WinXP SP1 |
| 875P Intel Inf update v5.00.1012 | |
| Catalyst v4.3 | |
| Workstation Benchmarks | Sisoft Sandra Standard 2004.2.9.104 |
| AIDA32 v3.93 | |
| Unreal Tournament 2004 Demo Build 2004-02-10_03.01 | |
| Standard CTF Botmatch Benchmark for UT2004demo v1.3 | |
| 3D Mark2001SE Build 330 | |
| PC Mark 04 Build v1.0.0 | |
| Prime95 v2.38 | |
| Memtest86+ v1.11 | |
| CPUZ v1.21 |
- Defining Stable Memory

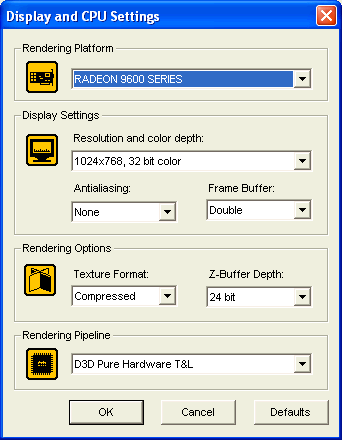

In order to make sure our memory was stable we used the Memtest86+ software. At least 2 passes at extended mode should be error free before accepting the corresponding FSB speed. After running the benchmarking software (AIDA32, Sisoft Sandra 2004 & UT2004) under windows we ran two instances of Prime95 (Blend/Small FFTs) while 3D Mark 2001SE was continuously looping, for at least six (6) hours, to confirm the stability of the system. The 3D Mark 2001Se settings used for all tests are shown in the following screenshots:
The figures displayed from the test results (AIDA32, Sisoft Sandra) are the average after running each test three (3) times. Note that the Sisoft Sandra results (Integer value and a Float value) were added and divided by 2 to give us a single number for each test. For the UT2004 we used the Standard CTF Botmatch Benchmark for UT2004demo v1.3 at only 1024x768 and we present the average FPS results.
