Noctua NH-U9B SE2 review

Jun 23,2010 0

1. Features



Review Pages

1. Features
2. A closer look, installation
3. How we test
4. Performance
5. Summary



Manufacturer
Noctua
Model
NH-U9B SE2
Price

$55

Category
Power users

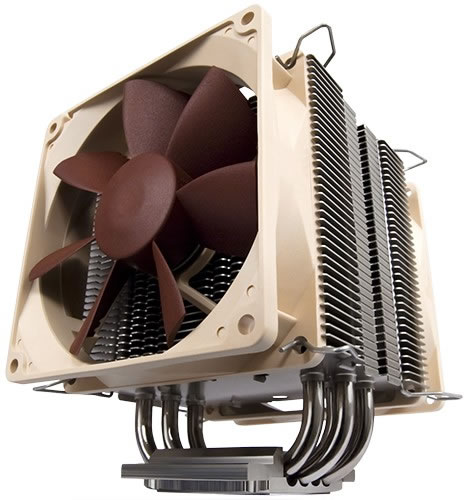

Noctua's NH-U9B SE2 cooler is a special edition of the NH-U9B cooler for HTPCs or smaller cases. The NH-U9B SE2 now comes with two of Noctua's NF-B9 92mm fans and adds support for LGA1156 as well as LGA1366 via the latest SecuFirm2 multi-socket mounting system. It also supports AMD's AM2, AM2+ and AM3 systems.

The cooler has been designed to offer users quiet cooling, a performance level close to its bigger brothers while being much more compact. The supplied Low-Noise and Ultra-Low-Noise-Adaptors allow for full flexibility in fine-tuning the cooler for more quietness or maximum performance in push-pull mode.

- Product features

NH-U9B NH-U9B Heatsink
The NH-U9B SE2 is built around Noctua's NH-U9B heatsink that combines quiet cooling performance with compact size, making it ideal for use in HTPC systems and smaller cases.
SecuFirm SecuFirm2 multi-socket mounting system
Noctua’s enthusiast grade SecuFirm2 multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA775, AM2, AM2+ and AM3)
NF-B9 2x NF-B9 92mm Premium Fan
Including two of Noctua's NF-B9 92mm fans with Low-Noise and Ultra-Low-Noise-Adaptors, the NH-U9B SE2 offers full flexibility in fine-tuning the cooler for supreme quietness and maximum performance in push-pull mode.

NT-H1 NT-H1 Thermal Compound
Noctua's NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
Kit Special Edition Premium Kit
Bundled with a tube of NT-H1, two exquisite NF-B9 fans and the new SecuFirm2™ multi-socket mounting system, the NH-U9B SE2 forms a complete package that's backed up with 6 years manufacturer's warranty

- Specifications

Socket compatibility   Intel LGA1366, LGA1156, LGA775 & AMD AM2, AM2+, AM3 (backplate required)



Height (without fan)   125 mm



Width (without fan)   95 mm



Depth (without fan)   71 mm



Height (with fan)   125 mm



Width (with fan)   95 mm



Depth (with fan)   95/120* mm



Weight (without fan)   460 g



Weight (with fan)   550/640* g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility   2x 92x92x25mm



Scope of Delivery
  • 2x NF-B9 premium fan
  • 2x Ultra-Low-Noise Adaptor (U.L.N.A.)
  • 2x Low-Noise Adaptor (L.N.A.)
  • Y-Split Cable
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kits
  •


    Warranty   6 Years





    Fan specifications




    Model   Noctua NF-B9



    Bearing   SSO-Bearing



    Rotational Speed (+/- 10%)   1600 RPM



    Rotational Speed with L.N.A. (+/- 10%)   1300 RPM



    Rotational Speed with U.L.N.A. (+/- 10%)   1000 RPM



    Airflow   64,3 m³/h



    Airflow with L.N.A.   52,6 m³/h



    Airflow with U.L.N.A.   41,1 m³/h



    Acoustical Noise   17,6 dB(A)



    Acoustical Noise with L.N.A.   13,1 dB(A)



    Acoustical Noise with U.L.N.A.   7,9** dB(A)



    Input Power   1,32 W



    Voltage Range   12 V



    MTBF   > 150.000 h
