Mitsumi DW-7872TE DVD±RW recorder - Page 9

Writing Quality Tests - 3T Jitter Tests

On an 80min 48X CD-R disc from Taiyo Yuden we burned the same AudioCD project at 8x, 16x, 24x, 32x and 40x. The 3T Pit & Land Jitter graphs are presented here.

- 3T Pit results

As we can easily conclude from the graph above, the lower the speed the better is the quality. At 24x and lower, the writing quality is very good. Above 24x the litter values are increased, but not in extremely high levels.

The average 3T Pit Jitter values for all recording speeds are illustrated in the following table.

The average Pit jitter for recording speeds of 24x and over is acceptable, and very good for those below.

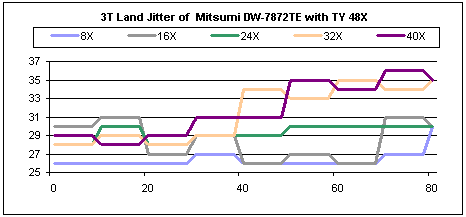

- 3T Land results

The jitter land levels illustrated in the graph above are for all speeds very good. Especially, once again, recording at 24x and below, is high quality recording.

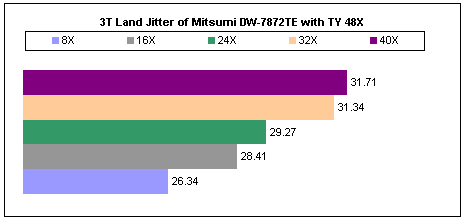

The following average values graph confirms the very good burning quality of Mitsumi recorder.

- Summary

Mitsumi DW-7872TE is a very good recorder, at least with Taiyo Yuden media. In the following page we test the drive's writing quality with other media brands.
