Mitsumi CR-480ATE CD-RW

Feb 18,2002 0

6. Writing Quality Tests



Review Pages

1. The first 32x CD-RW drive arrives!
2. Data Tests
3. HS-RW reading tests
4. DAE Tests
5. CDR Tests
6. Writing Quality Tests
7. RW Writing Tests
8. Conclusion



Mitsumi CR-480ATE IDE CD-RW - Page 6

Writing Quality Tests

We used many medias ,mostly 24x certified, and burned them at the maximum 32x (Z-CLV) writing speed with the Mitsumi CR-480ATE drive. We used Nero 5.5.5.7 and all CDs were Audio CDs with 74:51:27 in size. The produced CDs, were measured from DigitalDrives and results are illustrated in the following tables:

Mitsui 74min 24x media
Model
C1
Average Burning Time (secs)
Max
Average
Yamaha CRW3200E (OWC on)
20
0.7
227
Yamaha CRW3200E (OWC off)
17
0.7
LiteOn LTR-24102B
64
0.9
242
AOpen CRW2440 (JustSpeed on)
18
1.2
246
AOpen CRW2440 (JustSpeed off)
26
1.7
245
Plextor PX-W2410A
17
1.5
230
TEAC CD-W524E
17
0.8
237
Mitsumi CR-480ATE (32x->16x)
17
0.8
315

The Mitsumi CR-480AE didn't perform so well with Mitsui's 24x CD-R media. The drive needs 5:15mins to end the task. The drive lowered the recording speed down to 16x for writing Mitsui's 74min 24x media. The average 0.8 C1 error rate is very good:

Taiyo Yuden 74min 24x media
Model
C1
Average Burning Time (secs)
Max
Average
Yamaha CRW3200E (OWC on)
28
0.6
228
Yamaha CRW3200E (OWC off)
53
3.0
LiteOn LTR-24102B
7
0.2
246
AOpen CRW2440 (JustSpeed on)
10
0.5
253
AOpen CRW2440 (JustSpeed off)
11
0.5
249
Plextor PX-W2410A
9
0.6
232
TEAC CD-W524E
9
0.4
238
Mitsumi CR-480ATE (32x)
10
0.1
221

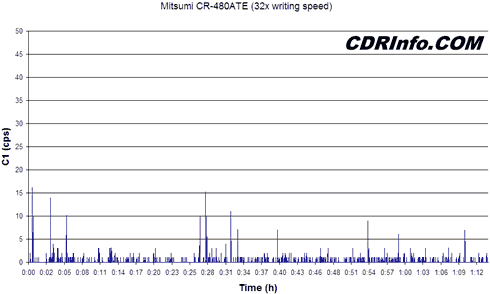

With Taiyo Yuden 74min 24x certified media, the Mitsumi CR-480ATE performed very well and not only has the lower recording time but also very low C1 error rate (0.1).

Mitsubishi Chemicals 74min 24x media
Model
C1
Average Burning Time (secs)
Max
Average
Yamaha CRW3200E (OWC on)
12
2.1
259
Yamaha CRW3200E (OWC off)
12
2
225
LiteOn LTR-24102B
10
1.8
244
AOpen CRW2440 (JustSpeed on)
13
1.6
247
AOpen CRW2440 (JustSpeed off)
16
1.6
243
Plextor PX-W2410A
17
1.9
234
TEAC CD-W524E
15
1.8
236
Mitsumi CR-480ATE (32x)
12
1.3
219

None of the tested drives seem to give a very good writing quality when Mitsubishi Chemicals (Verbatim) 74min 24x certified media used. The Mitsumi CR-480ATE however managed not only to have the lower C1 error rate, but also the lower recording time (due to 32x writing speed).

Various media at 32x writing speed
Model
C1
Average Burning Time (secs)
Max
Average
Ritek 80min 24x (32x->16x)
17
0.6
338
Taiyo Yuden 80min 24x
13
0.2
232
MitsuBishi Chemicals 80min 24x
24
3.0
231
Ricoh 80min 24x
14
1.0
230
Maxell 80min 32x
52
25.6
229
Mitsui 74min 16x (32x->16x)
20
0.3
315

Using various other media we noticed that in the cases of Ritek and Mitsui the drive lowered the recording speed down to 16x (32x was selected in the first place). Using Maxell based CDR media, the error rate is very high (25.6 average C1 errors),which can be explained since the media was probably prototype. However the Taiyo Yuden/Ricoh 80min 24x certified media seems working just fine.
