Minix Neo Z83-4 Windows Mini PC review
5. GPU tests
The system's Intel HD Graphics supports:
- Hardware acceleration including support for H.263, MPEG4, H.264, H.265 (HEVC), VP8, VP9, MVC, MPEG2, VC1, JPEG.
- Encode hardware acceleration including support for H.264, H.263, VP8, MVC, JPEG.
| Integrated Graphic Information | |
| GPU | HD Graphics (Cherry Trail) |
| Execution Units | 12 |
| Displays | 2 |
| Frequency | 200 MHz |
| Max frequency | 500 MHz |
| Max memory | 2 GB |
| Output | Embedded DisplayPort, HDMI |
| DirectX | 11.1 |
| OpenGL | 4.3 |
| OpenCL | 1.2 |
| OpenGL ES | 3.0 |
| HDMI | 1.4b |
| Vulkan | 1.0 |
| DP | 1.1a |
| eDP | 1.3 |
| Max HDMI Res | 1920x1080 @60 |
| Max DVI Res | 1920x1080 @60 Hz |
| Max DSI Res | 1900x1200 @60 Hz |
| Max DP Res | 2560x1600 @60 |
| Max eDP Res | 1920x1080 @60 Hz |
You can drive two external monitors using the HDMI and miniDP ports. However, the HD Graphics only support mini-DP to D-Sub conversion or direct mini-DP to mini-DP/DP connection. Mini-DP to HDMI or mini-DP to DVI is not supported.

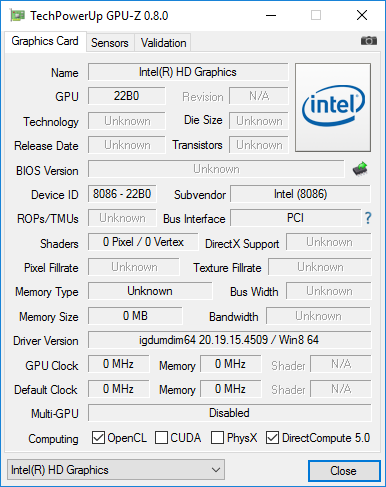

The GPU-Z provides more details:

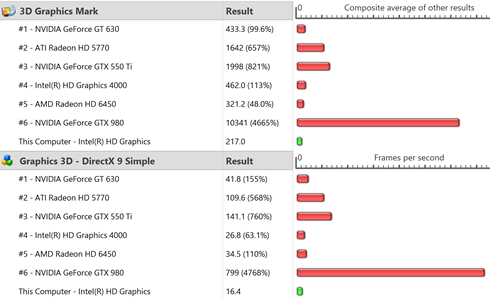

The PassMark 8 software gives us an estimation of the system;s strengths. You really shouldn't expect any serious performance from an integrated GPU. At both 2D/3D Marks, the HD Graphics is much slower than AMD Nvidia graphics solutions:
The popular FutureMark 3D benchmarks returned the results you see below, which are very low compared with Intel HD 530 / 510 Graphic cards:
Test |
HD Graphics | HD Graphics 510 | |
| 3D Mark 05 | 4155 |
9510 |
17009 |
| 3D Mark 06 | 2445 |
6136 |
10388 |
| 3D Mark Vantage | Ρ1326 |
P3142 |
P6175 |
| 3D Mark 11 | P353 |
P897 |
P1631 |
| 3D Mark Sky Driver | 975 |
2049 |
3808 |
As you realize, the Intel Graphics will only allow you to play DX9 games running at medium quality and probably to a resolution lower of 1280x720p.
