In the following tests, we checked the DVD reading capabilities of the LiteOn SHW-16H5S drive with scratched/defective DVD media. For our tests, we used CDVD Benchmark and Nero CDSpeed. The reference test media comes from ALMEDIO.

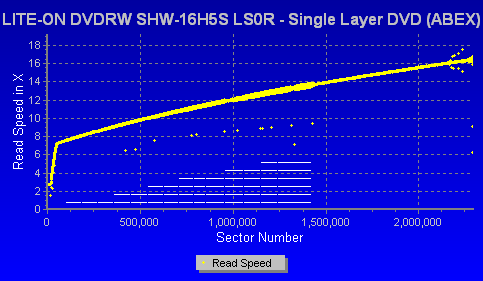

ABEX TDR-821

This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch varying in dimensions from 0.4 to 3.0 mm.

The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.

A very smooth reading graph with no errors. Excellent performance.

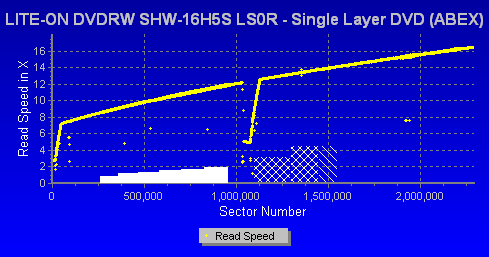

ABEX TDR-825

This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, the only difference being that there are no scratches on it. Instead, there are defective areas, ranging in dimensions from 0.5 to 1.1 mm.

There are also fingerprints sized between 65 and 75 micrometers.

Rather good performance without any errors reported. The graph could have been perfect if not for the speed drop, just before the fingerprints :-)

- Dual Layer media

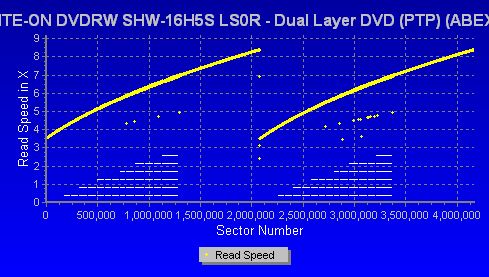

ABEX TDR-841

This is an 8.5GB dual layer single sided DVD-ROM disc with artificial scratches ranging dimensionally from 0.4 to 3.0mm, on both layers.

Excellent performance. It seems that artificial scratches ranging dimensionally from 0.4 to 3.0mm on both layers are not a problem for the SHW-16H5S.

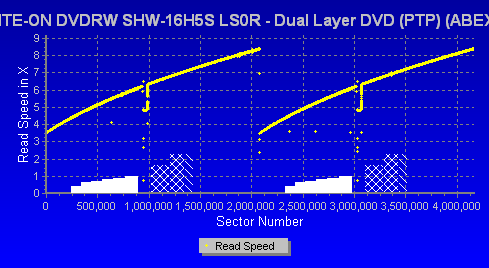

ABEX TDR-845

The disc is a single sided, dual layer DVD-ROM disc of a 8.5GBcapacity. The only difference between the TDR-845 and the TDR-841 is that the former includes defective areas and fingerprints.

The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micro meters.

Good performance with near perfectly smooth reading speed. Again there were speed drops just before the fingerprint but these did not affect the reading.

ABEX TDV-541

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB. The disc is based on the TDV-540 series which was designed to inspect and adjust DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals on DVD sound files.

The current TDV-541 also checks the error correction capabilities of the drive. It also includes scratches from 0.4 to 3.0 mm.

As smooth as it gets... perfrect reading.

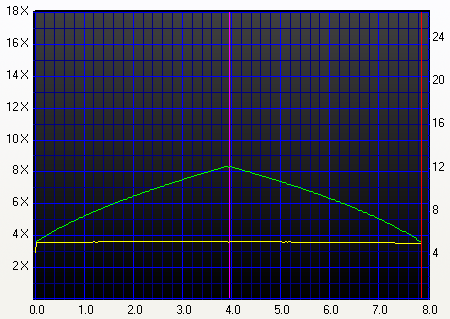

ABEX TDV-545

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the data surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometer fingerprints.

Excellent reading from the LiteOn drive. The artificialdots and fingerprints were not a problem for the drive's error correction mechanism.

- Summary

The LiteOn SHW-16H5S has a very strong error correction mechanism when it comes to DVD media, and it managed to read all of our discs successfully, without any errors being reported.
