CPU Coolers Roundup June 2008

Jun 26,2008 0

8. Titan TTC-NK35TZPW



Review Pages

1. Akasa AK-965BL
2. Evercool HPH-9525CU
3. Nexus HOC-9000
4. Nexus XiR-3500
5. Scythe Orochi
6. Scythe Shuriken
7. Scythe Zipang
8. Titan TTC-NK35TZPW
9. Methodology - testbed
10. Results - Price range $0~$30
11. Results - Price range $30+
12. Conclusion



Manufacturer
Titan
Model
TTC-NK35TZPW
Price

$30

Category
Power users

Titan introduces a new affordable cpu cooler for Intel/AMD socket that can be easily installed. The Titan TTC-NK35TZ/PW comes with a 90mm fan and of course PWM function for quiet operation.

- Features

  • Universal design for Intel & AMD CPU
  • PWM Speed Control Function
  • Long Life time Z-axis bearing
  • Easy installation

- Specifications

Outline Dimension
90x90x130 mm
Fan Dimension
95x95x25 mm
Rated Voltage
12V DC
Rated Current
0.32 A
Power Consumption
3.84 W
Rated Speed
900~2800 ± 10%RPM
Airflow
49.37 CFM
Static Pressure
0.1 inch H2O
Noise Level
<22.2dBA
Rotation Direction
Counter-Clockwise
No. of Pole
4 Pole
Bearing Type
Z-AXIS BEARING
Life Time
60,000 Hours

- Retail package



The package includes thermal paste, a 3-to-4pin adapter and mounting mechanism for AMD sockets. The installation clips for Intel processors are already pre-installed

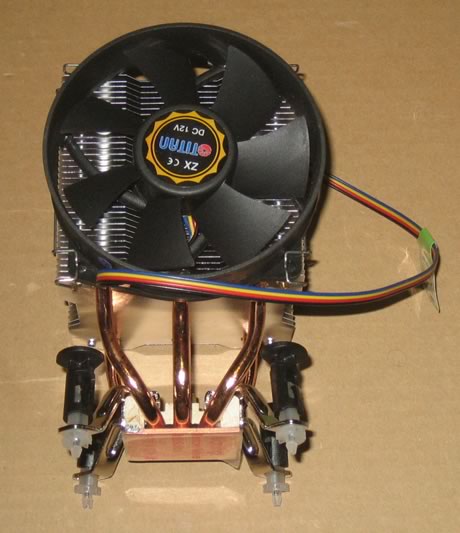

The cooler follows a high height design with a 90mm rotating fan.

Three full copper heatpipes are conducting heat from the base.

- Installation

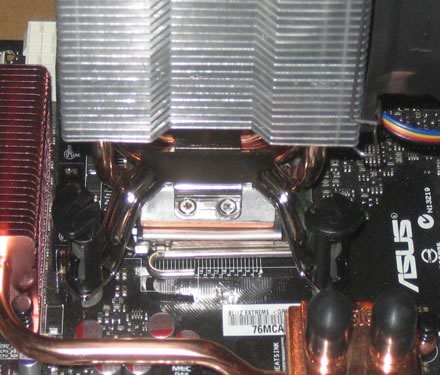

Intel's standard mounting mechanism combined with the high height of the cooler make installation very easy.

The cpu cooler will fit perfectly in a middle-sized PC case. It can be installed either in vertical or horizontal position.

- Ratings

Retail package
Design
Motherboard compatibility
Installation time
Copper Base quality
