PleXWriter PX-W4012TS
5. DAE Tests
PleXWriter PX-W4012TS SCSI CD-RW - Page 5
DAE Tests
- DAE features

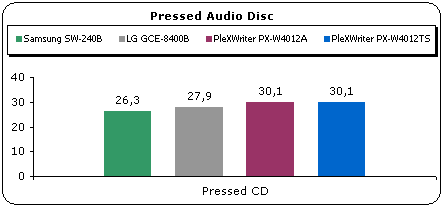

- Pressed AudioCD
The PX-W4012TS and PX-W4012A drives have exactly the same DAE reading performance (30.1X) with pressed discs.

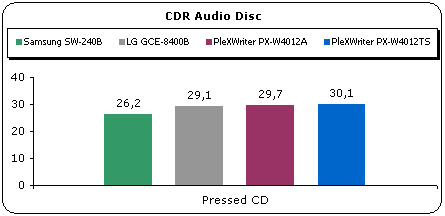

- Audio CD-R media
With CD-R media, the PX-W4012TS is slightly faster than the PX-W4012A by 0.4X.
- EAC Secure Extract Ripping mode
EAC's secure extract ripping mode results, which ensures maximum produced WAV quality. Note that for each drive we used the built-in detection function:
Tested Drives
|
Average DAE Speed (X)
|
|
Pressed
|
CDR
|
|
PleXWRiter PX-W4012TS
|
8.0
|
7.0
|

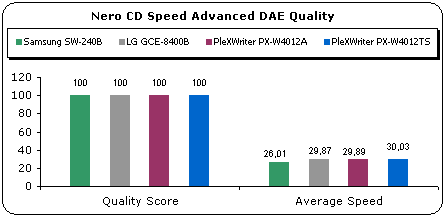

- Advanced DAE test

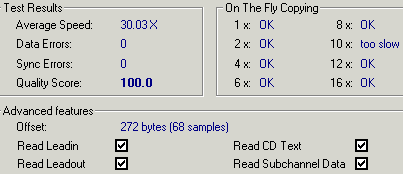

All the drives got a "100" score. The DAE speed for the PX-W4012TS is 30.03X. The drive can also read Lead-in/out information, CD-text and Subchannel data.
- Bad CDR Media results
We used CD DAE software to rip the whole disc (756539616 sectors) to the hard disk.
Average Speed (X)
|
Errors
|
Errors Of Total Disc (%)
|
|
PleXWRiter PX-W4012TS
|
Slows down ripping after 81%...
|
The condition of the disc can be considered as very bad, so the purpose of this test is not to get the best results with zero read errors, but to estimate the capabilities of the drive. The drive lowers the reading speed after 81% and eventually returns a reading error.
- Ripping 90 and 99mins AudioCDs
Tested drives
|
Ripping up to
|
PleXWriter PX-W4012TS
|
Can read up to 99 minutes
|
- Reading/Ripping Protected AudioCDs
For the test procedure we used 2 protected AudioCDs, which we tested in both recognition and ripping (with EAC BURST mode) processes:
* Pressed AudioCD with Sony Key2Audio (Celine Dion - New Day Has
Come)
* Pressed AudioCD with Cactus Data Shield 200 (Natalie Imbruglia - White Lilies
Island)
|
Key2Audio
|
CDS200
|
PleXWriter PX-W4012TS
|
Rips entire disc without any problems
|
Needs the "detect TOC manually setting"m
rips entire disc without any problems
|
The PleXWriter PX-W4012TS was able to rip the both CDS200 and Key2Audio protected Audio discs.
