In the following tests, we check the DVD reading capabilities of the Plextor 755SA drive with scratched / defective DVD media. For our tests, we used CDVD Benchmark and Nero CDSpeed. The reference test media comes from ALMEDIO.- Single Layer media
This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch varying in dimensions from 0.4 to 3.0 mm.
The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.
Even though the drive dropped speed over the last section of the defect area, the PX-755SA managed to successfully read over the defective area, and reached a maximum 16X reading speed at the end of the disc. This is exactly the same performance as with version 1.00 firmware.
This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, the only difference being that there are no scratches on it. Instead, there are defective areas, ranging in dimensions from 0.5 to 1.1 mm.
There are also fingerprints sized between 65 and 75 micrometers.

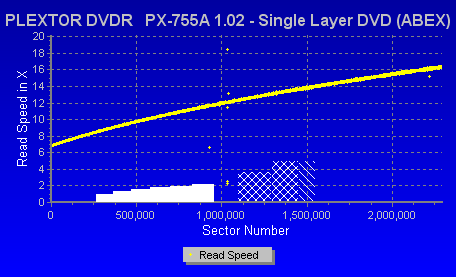

Excellent reading, with no drops in speed and a smooth line from start to finish. Maximum speed at 16X.
- Dual Layer media
This is an 8.5GB dual layer single sided DVD-ROM disc with artificial scratches ranging dimensionally from 0.4 to 3.0mm, on both layers.
Both Layers were read successfully, with the reading speed maxing out at 12X.
The disc is a single sided, dual layer DVD-ROM disc of a 8.5GBcapacity. The only difference between the TDR-845 and the TDR-841 is that the former includes defective areas and fingerprints.
The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micro meters.

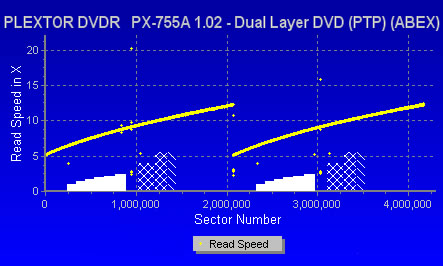

Once more good reading on both layers. The artificially defective areas on this media were no match for the drive's error correction mechanism, which read the whole disc with no drops in speed and at the max reading speed.
The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB. The disc is based on the TDV-540 series which was designed to inspect and adjust DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals on DVD sound files.
The current TDV-541 also checks the error correcting capabilities of the drive. It also includes scratches from 0.4 to 3.0 mm.

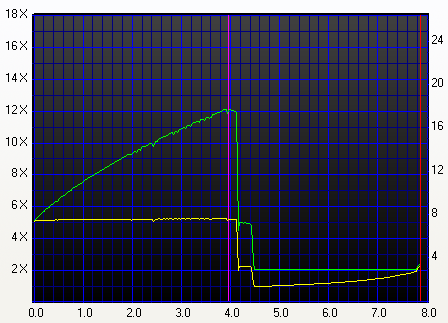

As we can clearly see in the graph graph, while the drive managed to complete the reading of this test media, it was with a severe cost in speed. A severe drop in reading speed occurred just after the start of the second layer on this disc, indicating not very good layer switching. Once again, no difference here from v1.00 firmware.
The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the data surface, sized from 0.4 to 1.0 mm. It has also 65 - 75 micro meter fingerprints.
The drive managed to make quick work of the 545 test disc, with a smooth scan line, from beginning to end of the reading process.
Overall, very good DVD error correction capabilities from the Plextor 755SA drive with our test discs. However, there is no difference from firmware v1.00 to v1.02 here.
