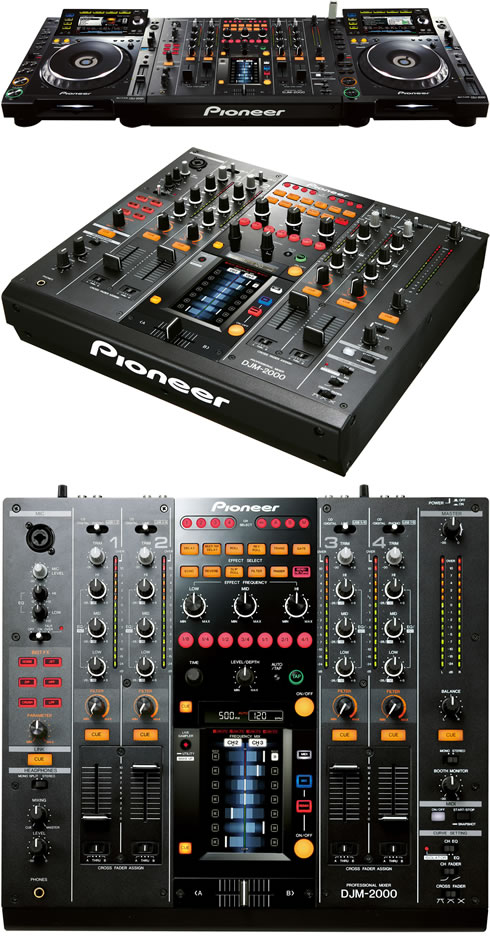

- Mixer Layout - The DJM-2000 inherits a larger foot print than its predecessors to accommodate a sectioned layout of features as well as cosmetically match the latest Pioneer CDJ series of digital media players. On the top center section of the mixer resides its EFX capabilities to give DJs a bounty of digital effects. Located on each side of the middle section is its audio mixing controls for connection of up to four digital or USB sources. Across the middle section, Pioneer added new INST FX (Instant Instrument FX) functions which allow DJs to further alter and create more sound effects. And, at the bottom center of the mixer is a large LCD touch display that provides DJs a window for remixing beats and adding effects with the ease of a simple touch of the screen.
- A first in the industry for audio mixers, the DJM-2000 incorporates a full-color 5.8-inch LCD multi-touch panel for adding audio effects. Users can simultaneously manipulate the displayed controls on the panel by touching different areas of the screen. Three different performance modes are available including;
- Frequency mix - Enables more precise mixing within seven frequency ranges. For example, users can enhance the bass region within the music they're mixing.
- Sidechain remix - DJs can create seven different dynamic audio effects with touches and movements on the screen.
- MIDI mode - Allows the user to assign various controls displayed on the LCD screen to control DJ software via MIDI. Four types of MIDI modes are available for more performance flexibility.
- Evolved Beat Effects - A section of the mixer resides an Evolved Beat Effects adopted from earlier versions of the DJM series of mixers to generate a multitude of sound effects. Numerous buttons were added for selecting multiple effects and beat parameters for additional performance capabilities. Further manipulation of the sound effects can be made using the Effect Frequency knobs that changes the low, mid and high frequency bands of the music. Turns of the knobs enhances the effects to each frequency band, i.e., an echo added specifically to the vocals of the music or a doubling of the hi-hat rhythm, providing incredible performance options.
- Instant Instrument FX - The INST FX (Instant Instrument FX) provides six additional audio effects that include Noise, HPF, LPF, Jet, Zip and Crush. Each of the effects can be induced into the channel with a turn of the Filter knob. Additionally, the Parameter knob allows the effects to be fine tuned.
- Pro DJ Link - When used specifically with Pioneer's CDJ-2000 or CDJ-900 turntables via Pro DJ Link, the DJM-2000 becomes an even more powerful musical tool. The mixer incorporates four Ethernet ports in the back of the unit allowing up to four of the most recent CDJ turntables to be connected (via LAN cables) while sharing only one music-filled SD card or USB storage device. In addition, up to two laptop computers pre-installed with Pioneer?s music management software rekordbox can be interfaced with the DJM-2000 via LAN cables, in cases that two DJs are transitioning for their individual performances.
- Live Sampler - A cool feature of the mixer is its Live Sampler capability which allows the sound from a microphone or from the MASTER output to be recorded directly into the mixer. The "sampled" sound can instantly be transferred via LAN cable to a CDJ-2000/900 for scratching.
- Link Monitor - When linked with the CDJ-2000 player, the mixer informs the DJ of its connected status. The JOG rings of the turntable changes in color based on the current on-air status or channel number connection, providing quick visual indications to the DJ.
- USB interface - The DJM-2000 features a USB audio interface3 that allows direct computer connection without the need for an external sound card. Up to four audio sources can be assigned to each channel providing even more flexibility. For additional convenience, the MASTER output can be connected directly to a computer for recording of performances
- Sound Quality - The DJM-2000 provides excellent sound quality. By utilizing balanced hybrid op-amp and a perfectly balanced output circuit in the analog processing stage, Pioneer managed to significantly decrease induced noise resulting in a dynamic range of 107dB with 0.004% THD for a clean and powerful sound.
Additional features of the DJM-2000 include:
- Switching 3-Band EQ/Isolator - Equipped with a switching 3-band EQ (+6dB to -26dB) and 3-band Isolator (+6dB to -∞dB) on each channel
- Digital In - Permits audio signal of each channel with no deterioration in sound quality
- Fader Start Play - Connection with CDJ player(s) with PRO DJ LINK or control cable allows the mixer to start the turntable by switching faders
- Talk Over - Lowers the volume of the music when a connected microphone is used
- Peak Level Meter - Displays input levels at a glance
- Cross fader Assign function - Allows the flexible assignment of the input on each channel to the cross fader
- Fader Curve Adjust function - Allows changes to cross fader and channel fader curves
The DJM-2000 will be available in June 2010 with a suggested retail price of $2,999.
- Number of Channels: AUDO 4-CHANNELS, MIC, 1-CHANNEL
- Input Terminals:
CD / LINE x 6 (RCA)
PHONO x 2(RCA)
DIGITAL IN x 4 (COAXIAL)
MIC X 1 (ON TOP, XLR & 1/4 INCH GENERAL- PURPOSE PHONEX1)
- Output Terminals
MASTER OUT x 2 (XLR x 1, RCA x 1)
BOOTH OUT x 1 (?-inch phone)
HEADPHONE MONITOR OUT x 1 (ON TOP, ? INC PHONE)
REC OUT x 1 (RCA)
DIGITAL OUT x 1 COAXIAL
- Other Terminals
SEND x 1 (1/4 INCH PHONE)
RETURN x 1 (1/4 INCH PHONE)
MIDI OUT x 1 (5P DIN)
CONTROL OUT x 2 (3.5mm mini-jack)
USB-B Port x 1
LINK TERMINAL x 6
- Sampling Rate 96kHz
- D/A Converter 32-bit
- A/D Converter 24-bit
- Frequency Response 20Hz to 20kHz
- Total Harmonic Distortion 0.004% or less
- Signal-to-Noise Ratio 107 dB (LINE)
- Headroom 19dB
- Power Source 220-240V 50/60 Hz
- Weight 8.5 kg
