Optorite DD0401 Dual DVD Recorder - Page 14
KProbe PI/PO quality results

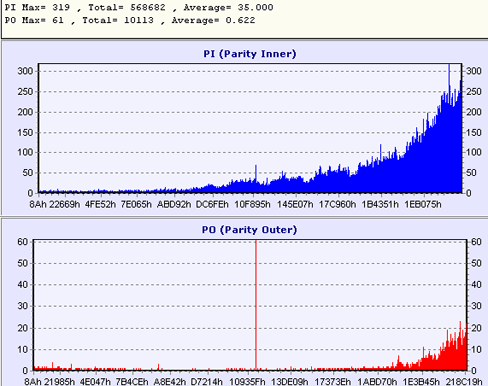

In the following screenshots you can see the PI/PO scans for various 4x DVD+R and DVD+RW media, recorded with the Optorite DD0401 at the maximum allowable speed.
The software used for the measurements is the KProbe v1.1.26, and the reader is the LiteOn LDW-401S. The ECC setting was 8. The specific methodology is very dependent on the drive used as a reader, and the reliability of the PI/PO provided output is also not technically confirmed. As a result, we cannot safely come up with absolute results, but we are allowed to compare the behavior of the drive with various DVD recordable/rewritable media. The official DVD specifications demand that PI should be < 280/sec (PI<<280/sec good quality) and the PO should be zero.
The discs we used came from Mitsubishi Chemicals, Verbatim, Taiyo Yuden, Ritek, Hi-Space, N-Tech and Maxell. More information about each disc type is available at the bottom of the page.
- Mitshubishi Chemicals 8x DVD+R
-
Mitshubishi 4x DVD-R
- Ritek 4x DVD-R
- Verbatim 4x DVD+R (Recorded at 8x)
- Mitshubishi 4x DVD+RW
- TY 4x DVD+R(Recorded at 8x)
- N-Tech 4x DVD-R
- N-Tech 4x DVD+R
- Hi-Space 4x DVD+R

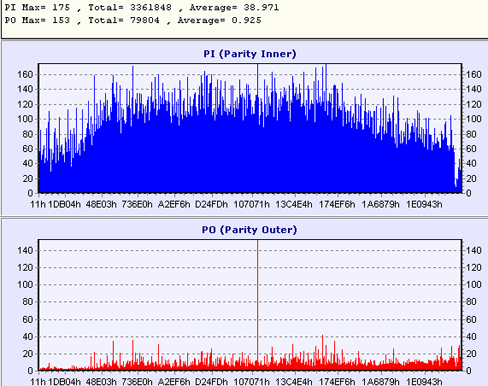

- Maxell 2x DVD-RW
Media
|
Code
|
N-TECH 4x DVD-R |
AN31 |
N-TECH 4x DVD+R |
MEDIA ID 001 |
Hi-Space 4x DVD+R |
MPOMEDIA 040 |
Mitsubishi 4x DVD-R |
MCC 01RG20 |
Mitshubishi Kagaku 8x DVD+R |
MCC03 |
Ritek 4x DVD-R |
RITEK G04 |
Verbatim 4x DVD+R |
MCC 002 |
Mitsubishi 4x DVD+RW |
MKM A02 |
Verbatim 2x DVD-RW |
MCC 01RW11n9 |
TY 8x DVD+R |
YUDEN000 T01 |
