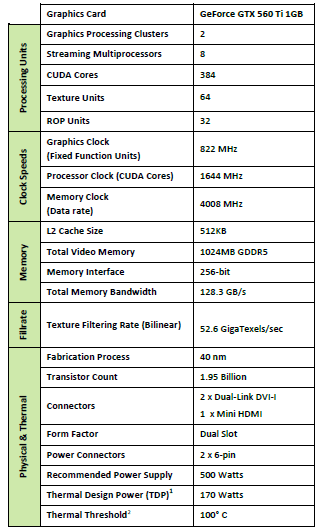

The card's PCB measures 9 inches in length. Display outputs include two dual-link DVIs and one mini-HDMI. Two 6-pin power connectors are required for operation.
To enable maximum frequency headroom, the GTX 560 Ti reference board design has essentially been overbuilt. Compared to the original GTX 460 board, Nvidia has added more robust 4-phase power circuitry, faster 5Gbps memory modules, and improved cooling. The new cooler features an additional copper heatpipe and a larger heatsink and cooling fan. Finally, a baseplate was added to cool the graphics memory and the GPU's power circuitry.
To protect the graphics card and system from issues caused by excessive power draw, the GTX 560 Ti reference board features the same power monitoring hardware first introduced last year with the GeForce GTX 580. The power monitoring hardware is an optional feature for GTX 560 Ti; some of Nvidia's add-in card partners may elect not to implement it on their custom GTX 560 Ti boards.
The GeForce GTX 560 Ti will be replacing the GeForce GTX 470 in Nvidia's lineup and is positioned directly against the Radeon HD 6870.
Compared to the GTX 460, the new GTX 560 Ti GPU share the same die and Nvidia has the same die and architecture optimizations that were introduced with the GTX 580 and GTX 570 GPUs. These include improved timing for faster core and memory clocks, re-engineered transistors for improved performance per watt as well as additional functional units for tessellation, shading, and texturing: The card has 384 CUDA Cores and eight PolyMorph Engines. The GeForce GTX 560 Ti also uses the same Streaming Multiprocessor (SM) configuration as GTX 460, with 48 CUDA Cores, four dispatch units, and eight texture units and special function units per SM. GTX 560 Ti also features bitstreaming support for Dolby True HD and DTS-HD Master Audio over HDMI.
These result to a 21% better performance/watt than the GTX 460 1GB, while it also runs 33% faster than the GTX 460 1GB. Compared to the legendary 8800 GT, the GTX 560 Ti offers the addition of DX11 support and also provides twice the memory bandwidth and three times the number of CUDA Cores. In terms of performance, the GTX 560 Ti delivers up to five times the geometry rates, and frame rates that are up to 3X faster than the 8800 GT, accorrding to Nvidia.
Nvidia also claims that the GTX 560 Ti delivers up to 40-50% more performance/watt in DX11 games than the AMD HD 6870.
GeForce GTX 560 Ti features eight PolyMorph Engines that are dedicated to DX11 tessellation and two Raster Engines. In comparison, the Radeon HD 6870 is limited to a single tessellation and raster unit. AMD incorporated an additional tessellation unit and raster engine in their latest flagship 6900 series high-end GPUs, validating their need for higher levels of tessellation. However, even with this new addition, Nvidia claims that the GTX 560 Ti delivers more performance in geometry processing and tessellation. Nvidia does not hesitate to compare the new card even with the Radeon HD 6950, where it claims that the GTX 560 Ti is able to outperform AMD?s flagship RV970 Cayman GPU.
The GTX 560 Ti will be available from Nvidia's partners at an estimated selling price of €239.
