NEC ND-2510A

0

11. DVD Recording Tests





NEC ND-2510A Recorder - Page 11

DVD Recording Tests

- Writing Performance

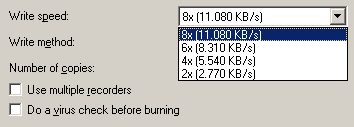

The NEC ND-2510A supports DVD-R/RW and DVD+R/RW writing. The maximum supported speed for DVD±R is 8X Z-CLV and 4X CLV for DVD±RW media. Nero Burning Rom reported speeds are shown below.

Below are listed the media codes supported for the ±R/RW formats with various recording speeds, as found in v2.15 firmware:

DVD-R
MCC 01RG20
2.0
4.0
6.0
8.0
FUJIFILM02
2.0
4.0
6.0
TYG01
2.0
4.0
6.0
8.0
TTG01
2.0
4.0
6.0
8.0
PVCR001002
2.0
4.0
6.0
8.0
PVCR002001
2.0
4.0
6.0
8.0
PVCR002002
2.0
4.0
6.0
8.0
TYG02
2.0
4.0
6.0
8.0
SONY08D1
2.0
4.0
6.0
8.0
MXL RG03
2.0
4.0
6.0
8.0
FUJIFILM03
2.0
4.0
6.0
8.0
FUJIFILM04
2.0
4.0
6.0
8.0
MCC 02RG20
2.0
4.0
6.0
8.0
MCC 03RG20
2.0
4.0
6.0
8.0
TTG02
2.0
4.0
6.0
8.0
TTG03
2.0
4.0
6.0
8.0
ProdiscS04
2.0
4.0
6.0
8.0
ProdiscF01
2.0
4.0
6.0
8.0
NAN YA A01
2.0
4.0
6.0
8.0
DVD-RW
JVC0VictorD7
2.0
4.0
MCC 01RW4X
2.0
4.0
DVD+R
RICOHJPNR00
2.4
4.0
6.0
RICOHJPNR01
2.4
4.0
6.0
YUDEN000T00
2.4
4.0
6.0
8.0
YUDEN000T01
2.4
4.0
6.0
8.0
TDK 001
2.4
4.0
6.0
8.0
MAXELL 001
2.4
4.0
6.0
8.0
YUDEN000T01
2.4
4.0
6.0
8.0
YUDEN000T02
2.4
4.0
6.0
8.0
YUDEN000T03
2.4
4.0
6.0
8.0
RICOHJPNR03
2.4
4.0
6.0
8.0
MCC 003
2.4
4.0
6.0
8.0
SONY D11
2.4
4.0
6.0
8.0
PRODISC R03
2.4
4.0
6.0
8.0
MAXELL 002
2.4
4.0
6.0
8.0
CMC MAG E01
2.4
4.0
6.0
8.0
Philips 081
2.4
4.0
6.0
8.0
TDK 002
2.4
4.0
6.0
8.0
TDK 002
2.4
4.0
6.0
8.0
RITEK R03
2.4
4.0
6.0
8.0
NANYA CLX
2.4
4.0
6.0
8.0
PHILIPS C08
2.4
4.0
6.0
8.0
DVD+RW
RICOHJPNW11
2.4
4.0
MKM A02
2.4
4.0
PHILIPS 041
2.4
4.0
SONY S11
2.4
4.0
RITEK 004
2.4
4.0
CMC MAG W02
2.4
4.0
INFODISCA10
2.4
4.0
DAXON D41
2.4
4.0
PRODISC W02
2.4
4.0
DVD+R9
MKM 001
2.4
00000000000
2.4
RICOHJPNR00
2.4
RICOHJPND00
2.4

By using Nero CD-DVD Speed with DVD-R and DVD+R media, we are able to see the 8X Z-CLV recording technology being used by the recorder.

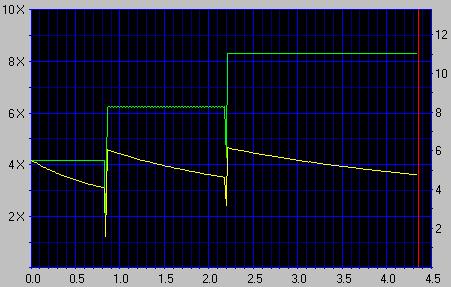

  • DVD-R media @ 8X

Click to enlarge!

  • DVD+R media @ 8X

Click to enlarge!

The drive's writing performance was the same for both formats. The recorder started writing at 4.13X and reached a maximum value of 8.28X, with an average speed of 6.79X.

- Burning Tests

We burned 4315MB of data on various DVD±R, DVD±RW media. We used the maximum allowed writing speed for each disc.

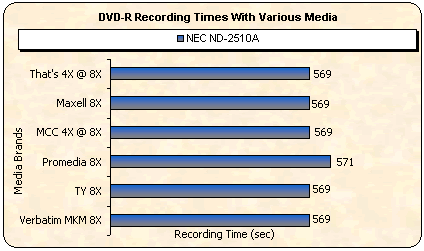

  • DVD-R media

Recording times seem to be the same for most DVD-R media, except for Promedia 8X media which was only 2 seconds slower. The drive completed a successful burn at 8X in 9:29mins.

Disc Label
Disc Information
Max Allowed Writing Speed
Total Recording Time (mins)
That's 4X @ 8X
TYG02
8X
9:29
MKM/Verbatim 8X
MCC 02RG20
8X
9:29
MCC 8X
MCC 01RG20
8X
9:29
TraxData 4X
RITEKG04
8X
9:29
Maxell 4X
MXL RG03
8X
9:29
Promedia 8X
Prodisc S04
8X
9:31
  • DVD+R media

With DVD+R media, best recording time came with Memorex 8X at 9:13mins. It should be noted that TraxData 4X media was recorded at 6X in 10:21mins.

Disc Label
Disc Information
Max Allowed Writing Speed
Total Recording Time (mins)
That's 4X @ 8X
TYG02
8X
9:18
Memorex 8X
CMC MAG E01
8X
9:13
TY 8X
YUDEN000 T02
8X
9:21
Traxdata 8X
RITEK R03
8X
9:22
Maxell 8X
MAXELL 002
8X
9:19
Traxdata
RICOH HJPN R01
8X
10:21

- DVD Overburning Tests

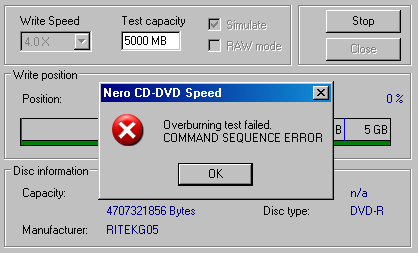

Using Nero CD-DVD Speed, we tested if the NEC ND-2510A can overburn using DVD+R and DVD-R media. Unfortunately, the drive does not support overburning, giving the following error with all inserted media.

  • DVD-R media

  • DVD+R media

- DVD+MRW Tests

The NEC ND-2510A does not support Mount Rainier.
