Memorex True 8Xn external DVD±R/RW Recorder - Page 13

In the following screenshots you can see the PI/PIF scans for the DVD-R/RW media we burned with the True 8Xn. The software we used for all measurements is the KProbe v2.1.0, and the reader is a LiteOn LDW-811S with "HS0Q patched" firmware, being able to read DVD±R/RW media up to 8X CAV. All scans have been performed at 8X with PI/PIF Sum8. Note that LiteOn drives cannot report PO but PIF errors, despite what KProbe reports. In addition all discs have been scanned with PX-712A v1.01 using PlexTools v2.13 for comparison levels.

Comparing the KProbe/PlexTools scans we can see major differences at the reported PI/PIF error rates. The main explanation is that we have two different readers, with different pickup/chipset combination, scanning at different reading speeds (8X CAV for KProbe, 2X CLV for PlexTools). Its interesting to see the disc scanned at low & high speed, since when error rate increases at a specific disc area, it should appear at both scans...else it would be, perhaps, a reading glitch of the tested reader.

Note: PI/PIF errors only give us a quick look at the error rate of the burned media. Those scans should be taken not as the absolute criteria of the burning quality but as an indication level.

• DVD-R Media

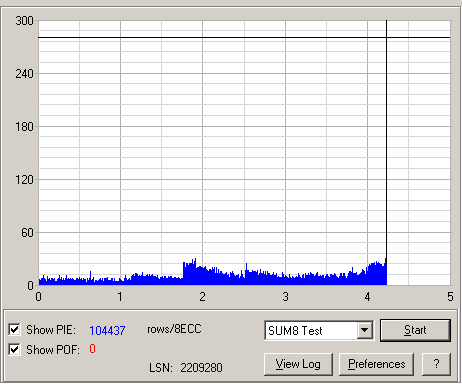

Taiyo Yuden 8X DVD-R @ 8X

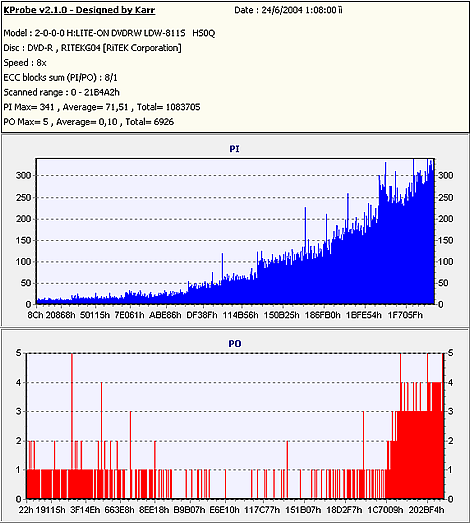

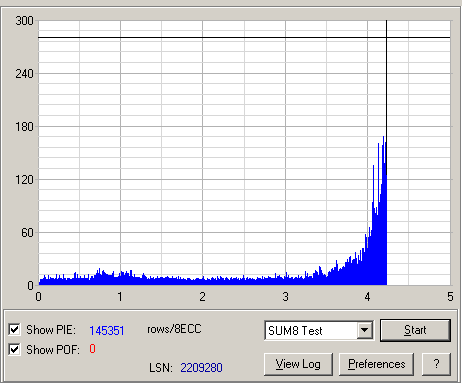

TraxData 4X DVD-R @ 4X

CMC Magnetics 8X DVD-R @ 8X

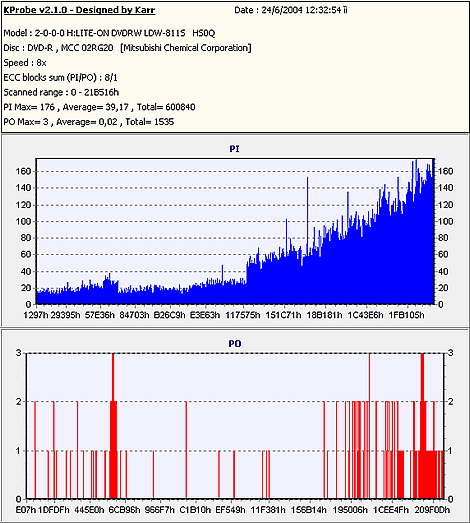

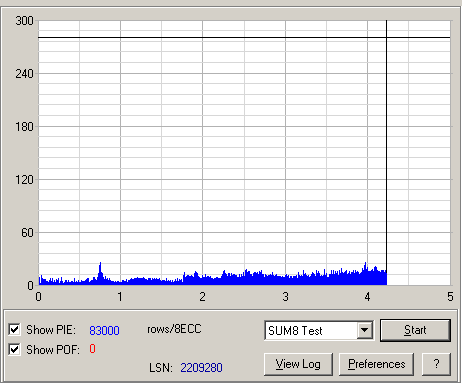

MKM/Verbatim 8X DVD-R @ 8X

MMore 4X DVD-R @ 4X

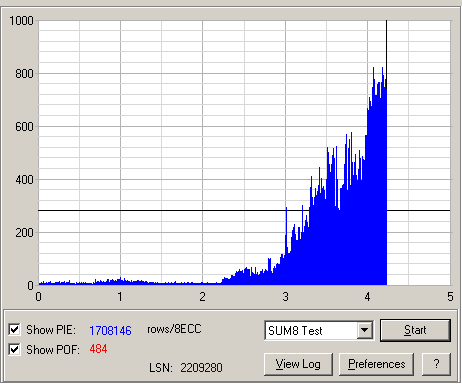

Mitsubishi Chemicals 4X DVD-R @ 8X

• DVD-RW Media

Verbatim 4X DVD-RW @ 4X

- Summary

The Memorex burns DVD-Rs with low PI/PIF error levels offering compatibility with the majority of the media we used. Only with Verbatim 4X DVD-RW the writing quality isn`t so good as there are some PIF errors and a high number of PI errors.
